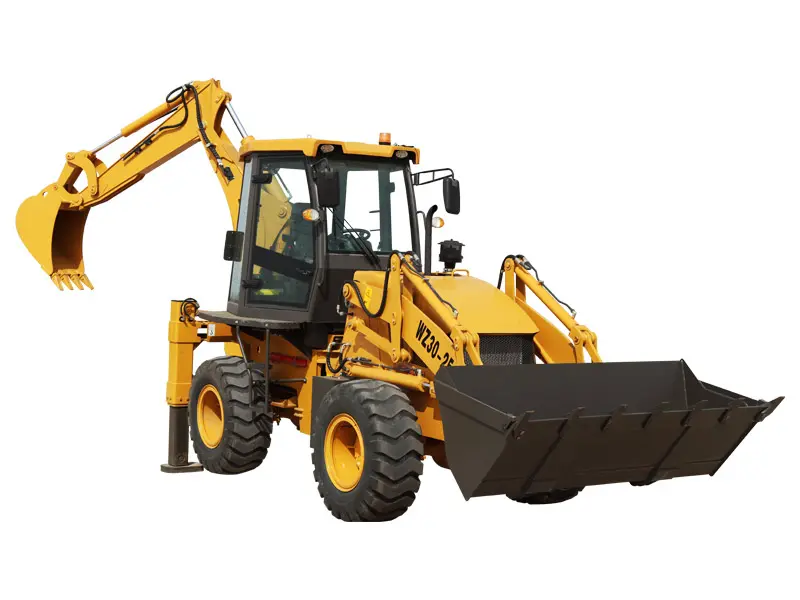

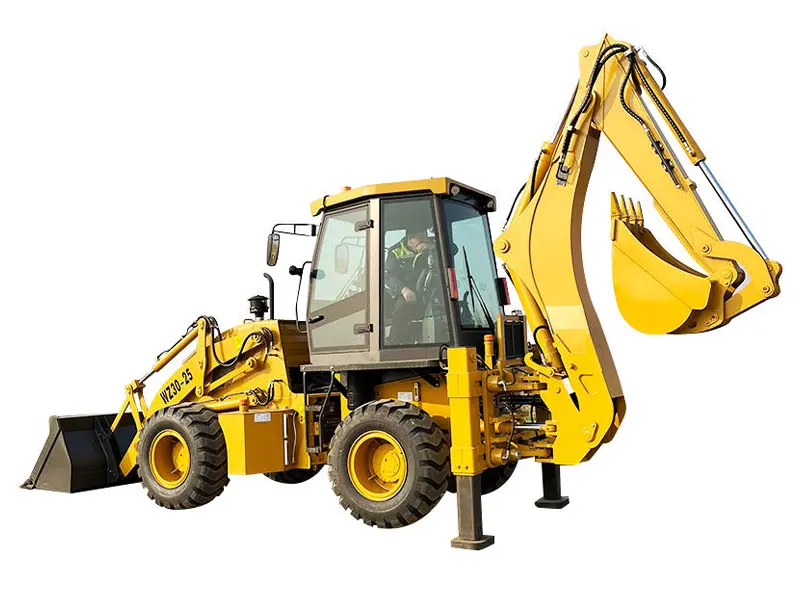

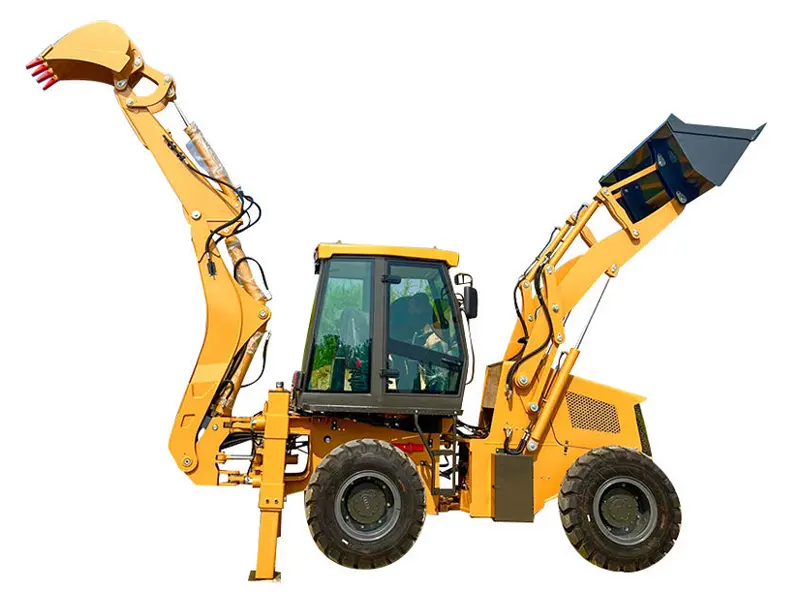

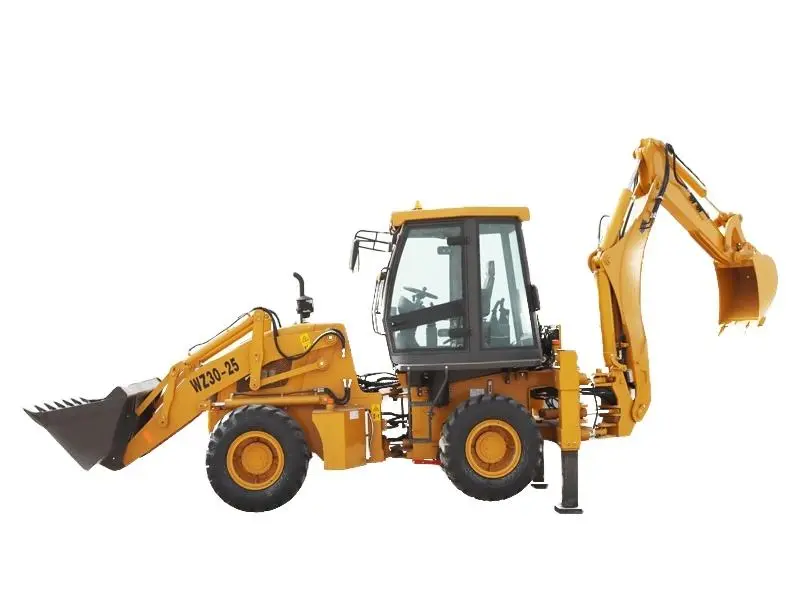

WZ30-25 mini Backhoe Loader
The WZ30-25 Mini Backhoe Loader(Also known as a compact backhoe loader) is a compact construction machine that combines loading and digging functions, offering the operational capabilities of both a loader and a backhoe excavator. Its small size, agile steering, and strong adaptability make it widely applicable in municipal engineering, farmland construction, landscaping, road maintenance, pipeline laying, and confined-space construction scenarios. It effectively enhances work efficiency while reducing labor costs.
|
Parameter |
Specification |
|---|---|
|
Form Factor(mm) |
5800*2268*3760mm |
|
Maximum Digging Radius (mm) |
4000/5200 mm |
|
Excavator bucket capacity |
0.3 cbm |
|
Maximum excavation radius |
5300/6600mm |
|
Maximum driving speed |
26km/h |
Introduct
The WZ30-25 Mini Backhoe Loader is a compact, multi-functional construction machine that combines loading and digging capabilities. Hydraulically driven for flexibility and efficiency, it is ideal for municipal projects, farmland operations, landscaping, and construction in confined spaces.

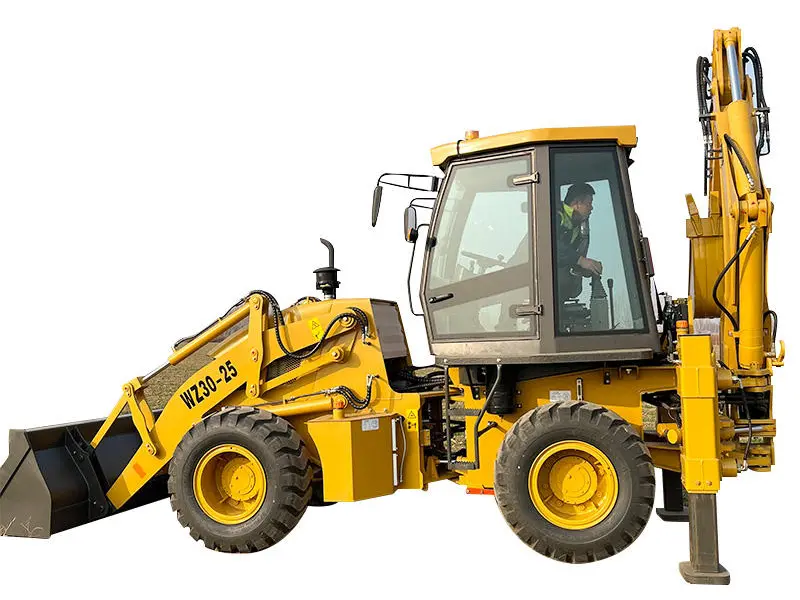

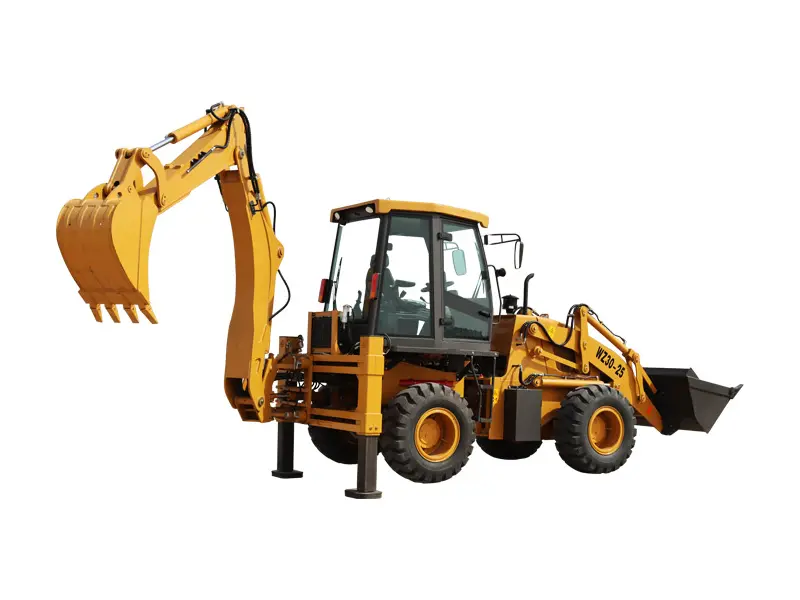

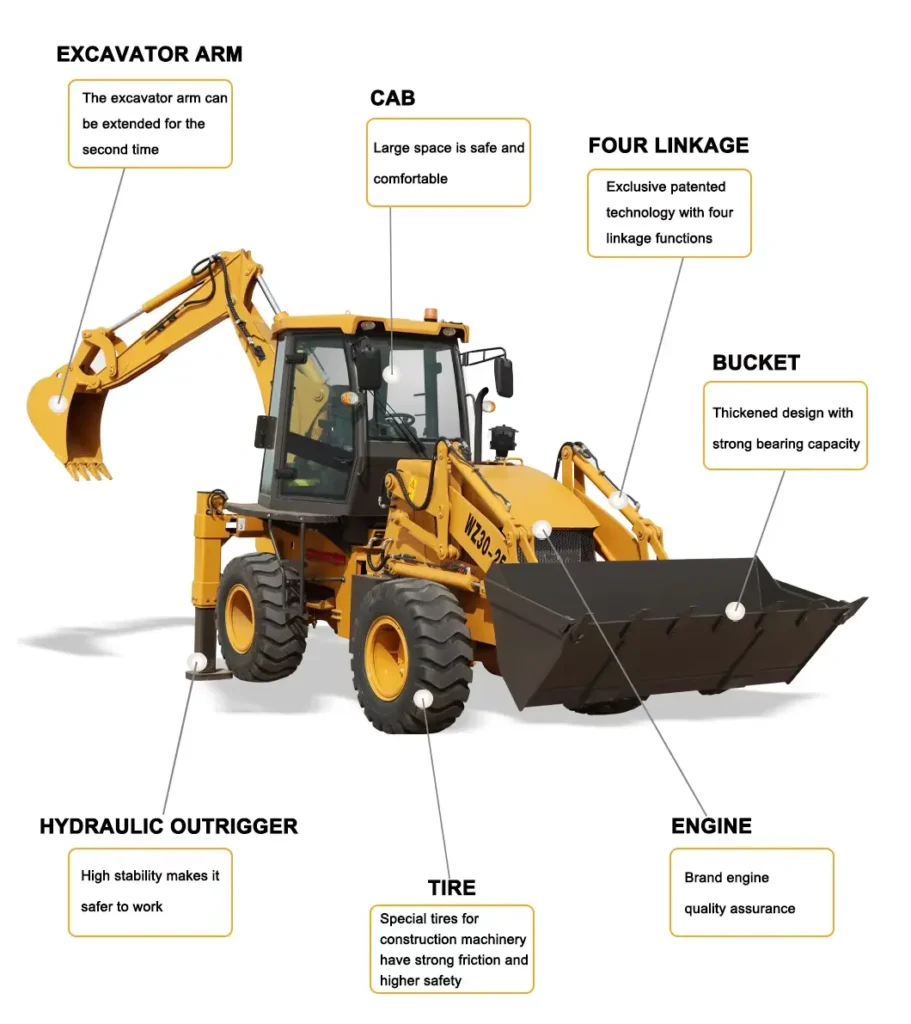

Structure of min Backhoe Loader
WZ30-25 Mini Backhoe Loader employs a modular and high-strength structural design philosophy, with key components systematically arranged to prioritize stability, durability, and operational efficiency. The following outlines the primary structural and component configurations:
- Excavator Arm: Features an extended, double-extension design to expand the operating range.
- Cab: Spacious cab ensures safety and comfort, enhancing the operating experience.
- Four Linkage: Exclusive patented technology with four interlocking functions.
- Bucket: Reinforced design for superior load-bearing capacity.
- Hydraulic Outrigger: High stability ensures safer operation
- Tires: Engineering-specific tires deliver superior traction, enhanced friction, and increased safety
- Engine: Branded engine provides reliable power and assured quality.
Working principle of WZ30-25 min Backhoe Loader
The WZ30-25 Mini Backhoe Loader operates by utilizing a diesel engine to power an efficient hydraulic system that distributes power to both the front-end loader and rear-end backhoe excavator. This enables multiple functions, including loading, digging, backfilling, and material handling. The front loader bucket handles material scooping, grading, and transport, while the rear excavator arm is used for trench digging, foundation work, and pipeline operations. Hydraulic outriggers enhance operational stability. With its compact design and agile maneuverability, this machine is ideal for municipal projects, agricultural construction, and confined worksites, offering a highly efficient compact backhoe loader solution.

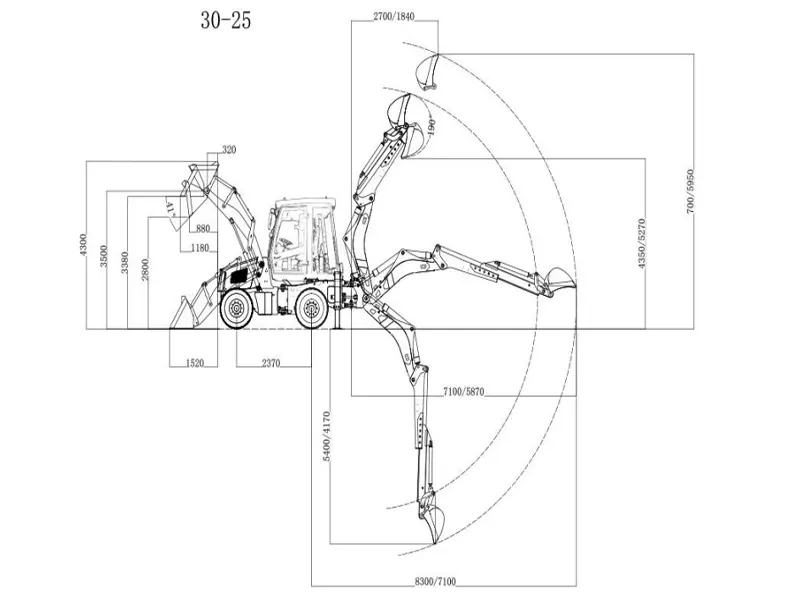

Size of WZ30-25 min Backhoe Loader
Videos Show
Focus on the core performance and practical applications of backhoe loader construction machinery. Watch the video to better understand the equipment’s dynamic demonstrations, technical breakdowns, and operational scenarios, providing a clear visual of its advantages.
Details Show

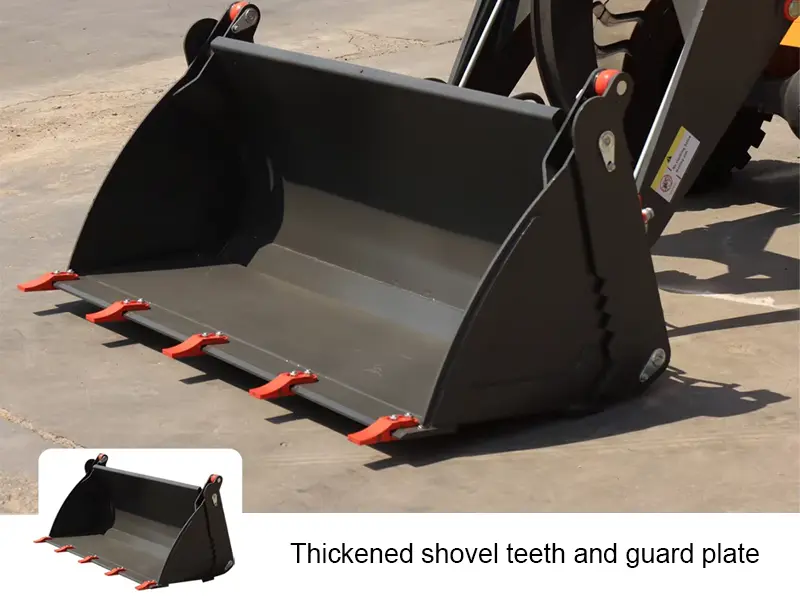

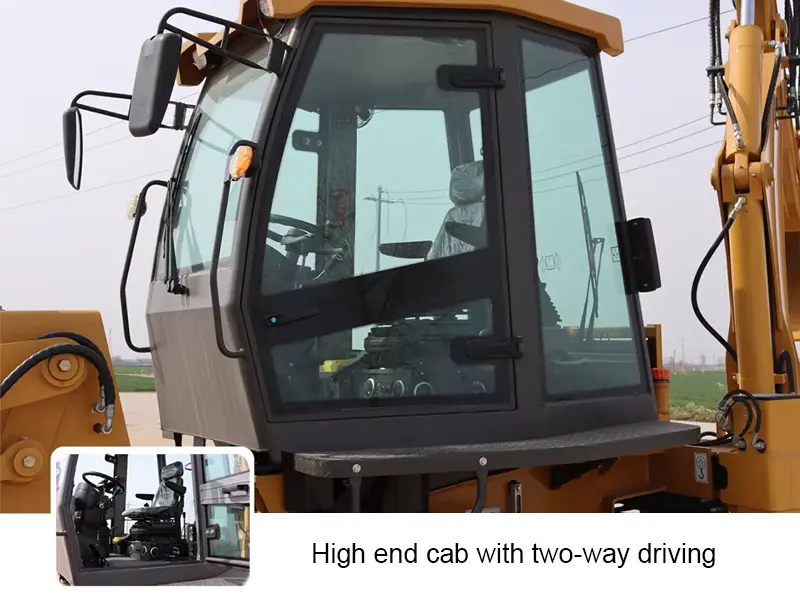

The WZ30-25 Mini Backhoe Loader features reinforced designs for its bucket, cab, tires, and critical protective components, prioritizing durability, safety, and operator comfort to comprehensively enhance the machine’s reliable performance in demanding work conditions. Below are the detailed Shows:
Specifications
The WZ30-25 Mini Backhoe Loader features a well-matched power system and hydraulic configuration. Its overall parameters are designed to balance operational efficiency and stability, delivering excellent digging force, loading capacity, and maneuverability. It meets the demands of municipal construction, agricultural engineering, and diverse working conditions, making it a well-rounded, highly versatile compact backhoe loader.
Parameters
| Engine Model | YuDong 4105 Supercharged | Max.Digging Depth | 4000-5200MM |
| Engine Rated Power | 85KW/H | Max. Digging Radius | 5300/6600MM |
| Torque Converter | YJ280 | Backet For Excavation | 0.3m³ |
| Tire Specification | 16/70-20 | Max. Height Of Excavation | 4200/5000 |
| Outline Dimension | 5800*2268*3760MM | Excavator Slew Angle | 190° |
| Min. Ground Clearance | 300MM | Max. Unload Heigh | 2770MM |
| Overall Machine Weight | 7650KG | Max. Unload Distance | 925MM |
| Max. Speed | 22KM/H | Bucket For Loading | 1m³ |
| Min. Turning Radius | 5000MM | Max. Lifting Height Of Load | 5880/7000MM |
Features of the backhoe and front loader
Compact Design
Small chassis with agile steering, ideal for confined worksites
Powerful Digging
An extended boom and reinforced bucket design boost productivity
Comfortable Operation
Spacious cab with excellent visibility reduces operator fatigue
Engineering-grade tires
High abrasion resistance and traction for mud, gravel, and paved surfaces
Reinforced structural components
Thickened critical load-bearing areas extend the machine’s lifespan
Transportation convenience
Optimized dimensions and weight for easy towing and site relocation
application compact tractor loader backhoe
Compact tractor loader backhoe, featuring an integrated loading and digging design, a flexible and maneuverable chassis structure, and stable hydraulic performance, this machine is suitable for various small-to-medium-sized projects and confined-space operations. It efficiently handles tasks such as digging, loading, backfilling, and material transfer, making it a versatile small-scale construction equipment for multiple industries.

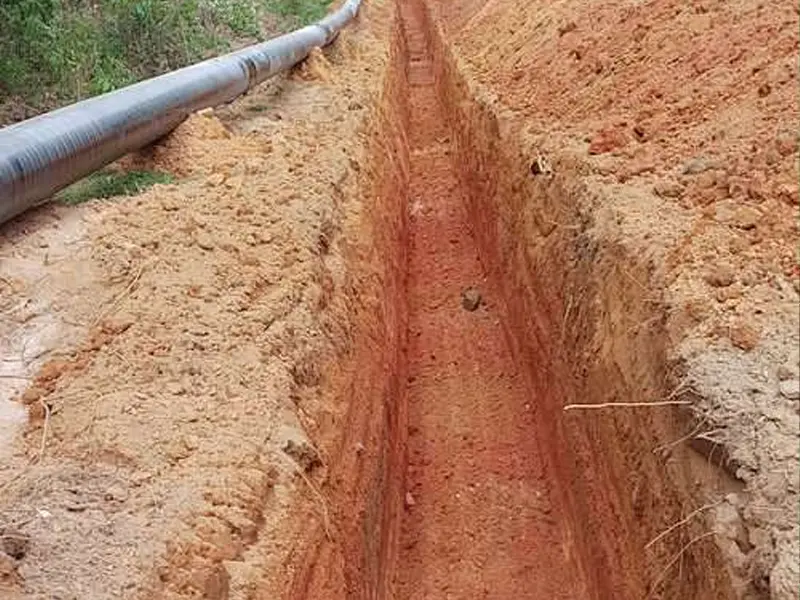

Water Conservancy and Irrigation
Excavating channels, clearing drainage ditches, and river channel improvement.
Farmland and Rural Construction
Suitable for land leveling, trench digging, and farm foundation construction.

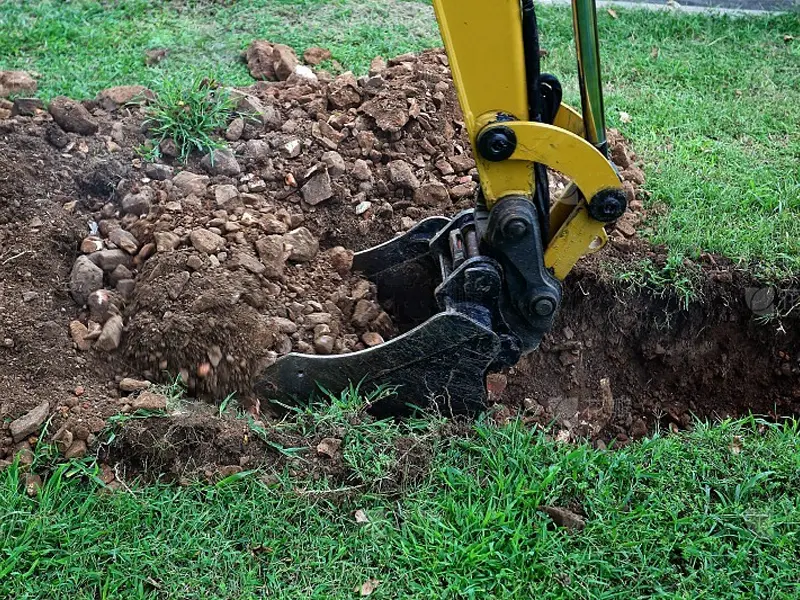

Landscaping and Garden Construction
Used for tree pit excavation, landscaping shaping, and earthmoving.
Road Construction and Maintenance
Participates in shoulder grading, ditch cleaning, and minor repair projects.

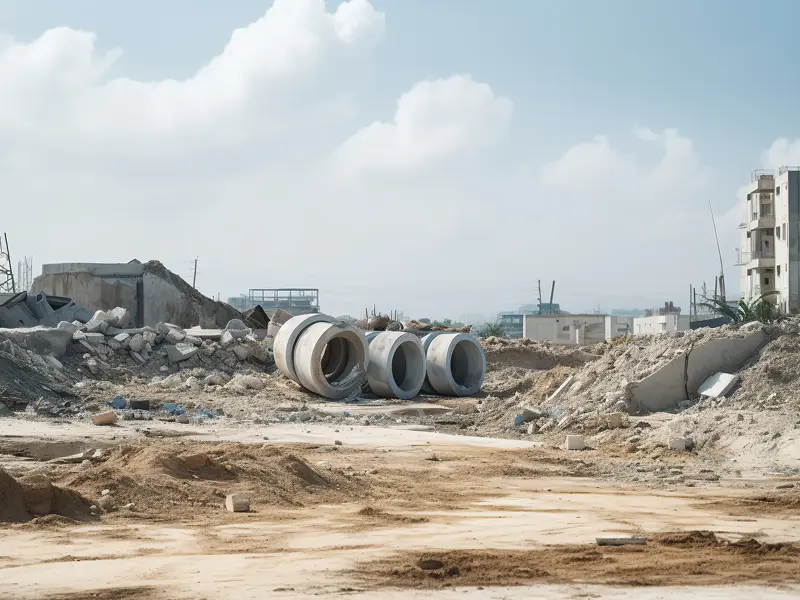

Building Foundation Construction
Completed small-scale foundation excavation, backfilling, and material handling.

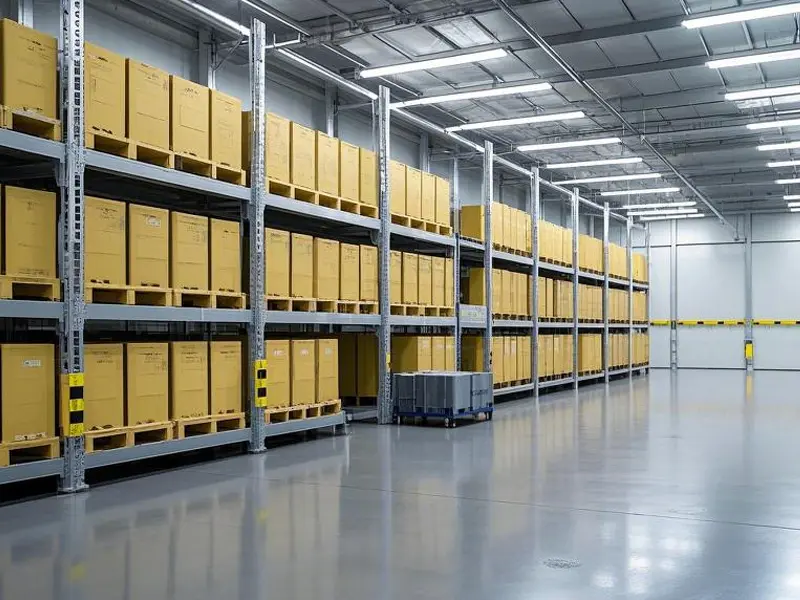

Confined Space Operations
Flexible operation in restricted environments such as factory premises and warehouses.
custom WZ30-25 min Backhoe Loader
The WZ30-25 Mini Backhoe Loader supports multiple customization options to meet diverse job site conditions and customer requirements, ensuring optimal performance in specialized construction sites or specific application scenarios.
Customization Options
- Cab Configuration: Optional ROPS safety cab and air conditioning enhance comfort and safety.
- Bucket Type: Choose between 4-in-1 or 6-in-1 buckets to adapt to various work scenarios.

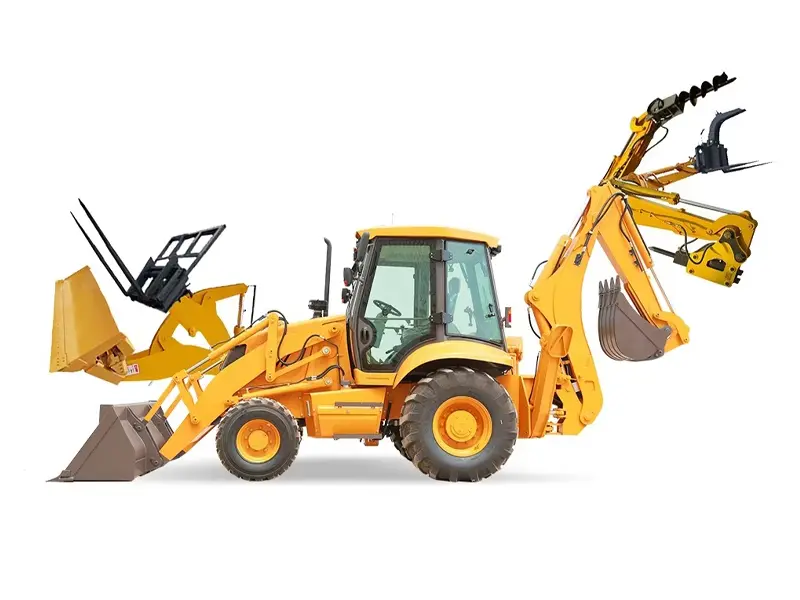

- Attachments: Supports multiple accessories, including hydraulic breakers, augers, grapples, dozer blades, and snowplows.
- Rated Load Capacity: Available in 1-ton and 2-ton versions to match varying workload intensities.
- Additional Features: Pre-installed hydraulic lines for breakers, with reserved interfaces for future attachment expansion.

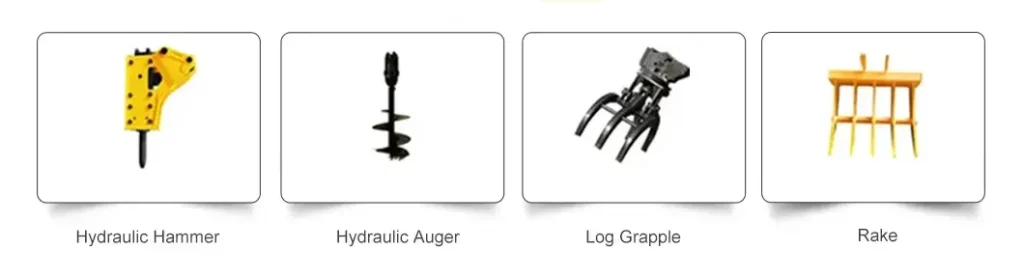

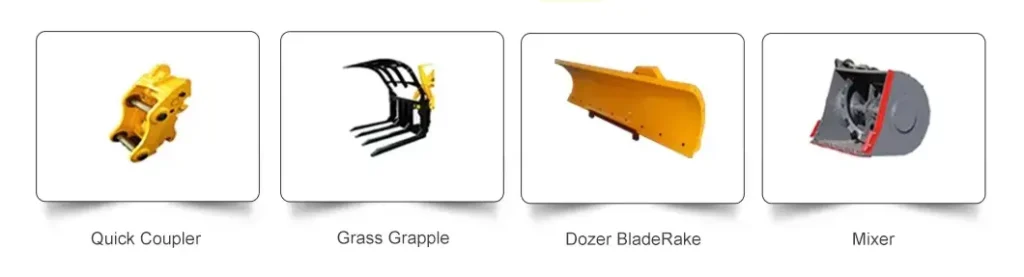

Attaghments
By flexibly configuring various attachments, a single backhoe loader can perform multiple tasks, truly achieving “one machine, multiple functions.” It can handle excavation, loading, grabbing, drilling, sweeping, and elevated work. Below are the attachments:
Certificates
From internationally recognized compliance certifications to proprietary intellectual property achievements, our comprehensive qualification system provides dual assurance for product quality, regulatory compliance, and technological innovation. Having passed rigorous audits by authoritative bodies, we meet global market access standards while leveraging proprietary patented technologies to fortify our products’ core competitiveness. Every piece of equipment we deliver is backed by reliable certification credentials.
min Backhoe Loader Manufacturer and Supplier
We are a professional manufacturer and supplier of mini backhoe loaders, equipped with our own production workshops and a mature manufacturing system. With an experienced engineering and technical team, we provide reliable and efficient solutions for diverse construction needs. Whether it’s equipment selection, functional configuration, or attachment matching, simply consult our professional team to receive project-specific recommendations and customized services. We help clients enhance construction efficiency and ensure long-term operational value.
FAQs
To help you quickly resolve questions and smoothly use related services, this section covers the most common issues encountered and their corresponding solutions. It assists you in quickly understanding product information. For more detailed solutions, feel free to contact our professional technical team anytime for one-on-one support.
Contact us
Whether you’re choosing the right construction machinery or need customized equipment configurations, our professional team can provide you with clear and actionable solutions.
- Select suitable equipment models
- Provide technical specifications and comparative recommendations
- Customize power, configuration, and attachment solutions
- Evaluate project budgets and delivery timelines
- Address procurement, transportation, and after-sales inquiries
Fill out the form now to get a personalized solution. Our experts will provide professional advice and ensure your project runs smoothly. Contact us today to start boosting efficiency!
