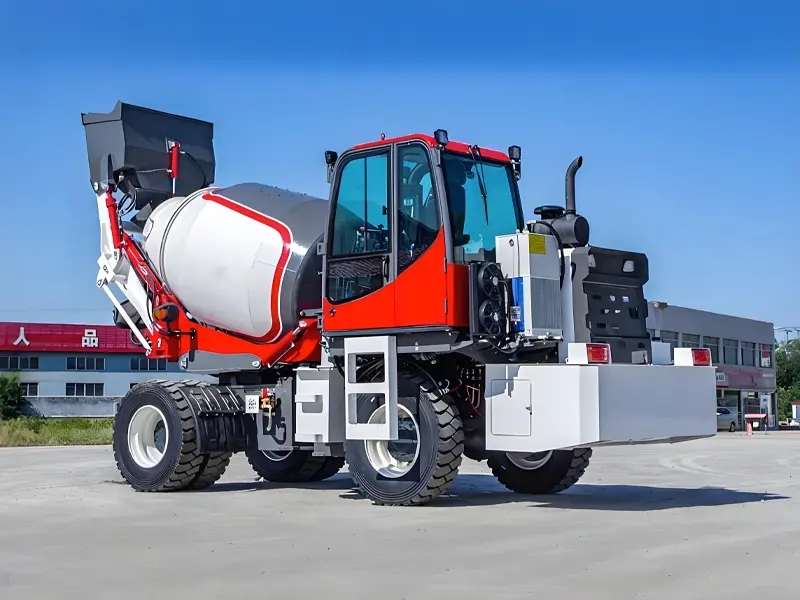

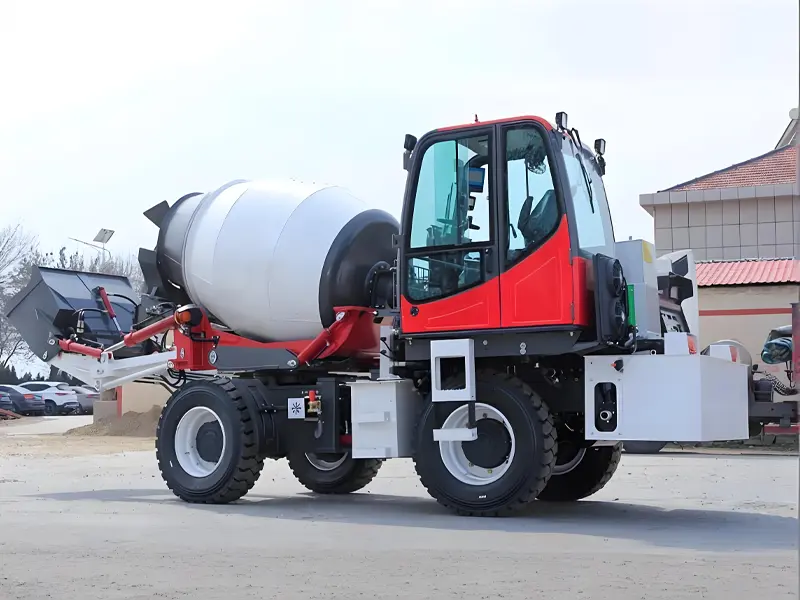

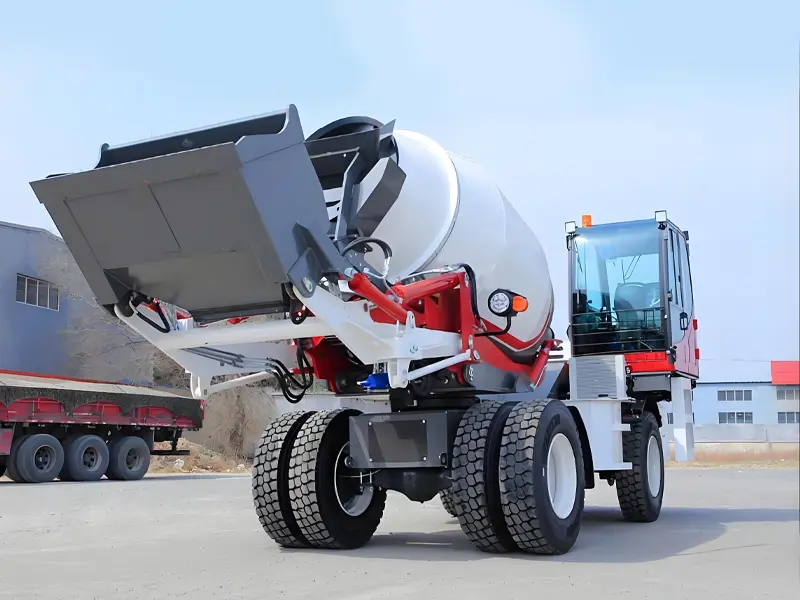

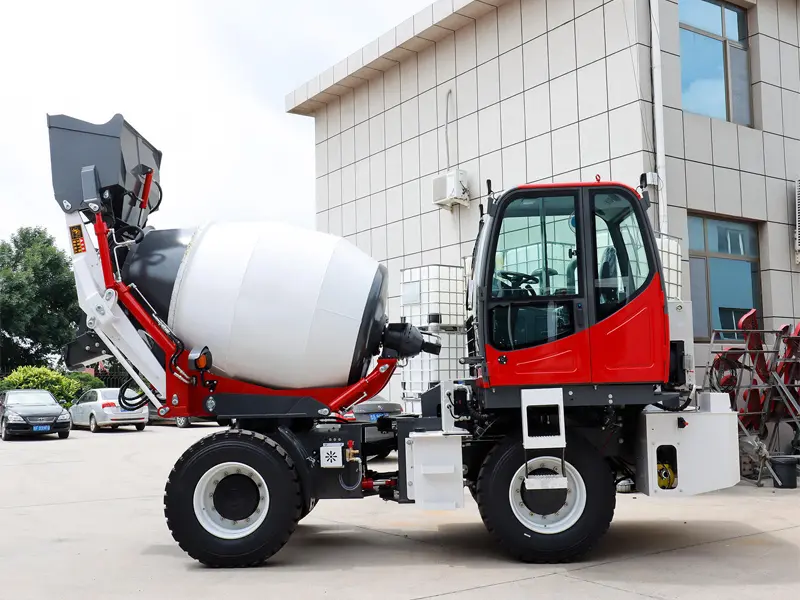

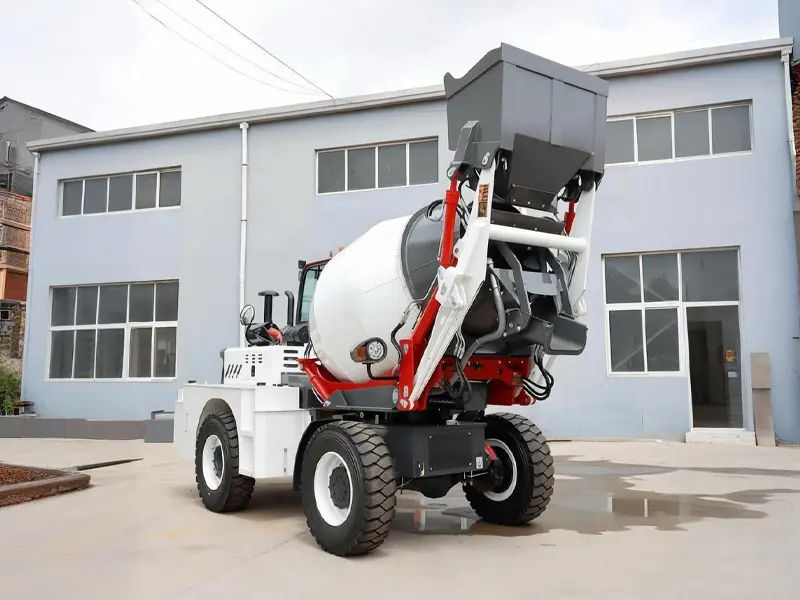

Self-Loading Concrete Mixer Truck: All-in-One Solution
Self-loading and unloading mixer trucks are multifunctional concrete construction equipment integrating automatic loading, metering, mixing, transportation, and unloading. This series offers multiple models ranging from 1.5 cubic meters to 7.5 cubic meters, suitable for projects of varying scales. Typically featuring four-wheel drive, hydraulic system control, automatic metering, and continuous mixing, these units deliver high mobility and adaptability to complex terrain. They ensure stable concrete mix ratios and high production efficiency.
|
Parameter |
Specification |
|---|---|
|
Travel Speed |
25 km/h |
|
Axle Number Traction Type |
4×4 |
|
Rotating Speed |
≥15 laps/minute |
|
Drive Axle |
Wheel side deceleration bridge |
|
Power type |
Turbocharged diesel engine |
Introduct
The self-loading mixer truck is a highly integrated, specialized engineering vehicle capable of independently completing the entire concrete process of “loading-mixing-transporting-unloading.” Its core distinction from traditional mixer trucks lies in its built-in loading arm, hopper, and precise water supply system. It does not require reliance on external concrete batching plants or loaders, enabling it to directly load materials at aggregate yards or perform batching and mixing operations directly at construction sites.
Structure of the self-loading mixer truck
- Chassis System: Consisting of the frame, axles, tires, and suspension system, it bears the entire vehicle’s weight.
- Power System: Includes the engine and related accessories, providing power for vehicle movement, loading, mixing, and unloading.
- Hydraulic System: Composed of hydraulic pumps, valves, cylinders, and hoses, controlling actions such as loading bucket operation, mixing drum rotation, unloading, and steering.
- Autoloading System: Primarily consists of a loading bucket and lifting mechanism, enabling automatic loading of aggregates and sand/gravel to reduce manual labor.
- Mixing System: Includes the mixing drum, mixing blades, and drive unit to achieve uniform mixing of concrete raw materials.
- Metering System: Composed of water metering devices and material metering devices to ensure accurate and stable concrete mix proportions.
- Water Supply System: Includes the water tank, water pump, and spray nozzles to provide the required water volume for the mixing process.
- Discharge System: Consists of the mixing drum rotation mechanism and discharge chute to enable multi-angle, continuous discharge.
Working principle of self loading concrete mixer machine
A self-loading concrete mixer is a type of machine that operates through the coordinated action of hydraulic and power systems. Blew is the working principle of self loading concrete mixer machine:

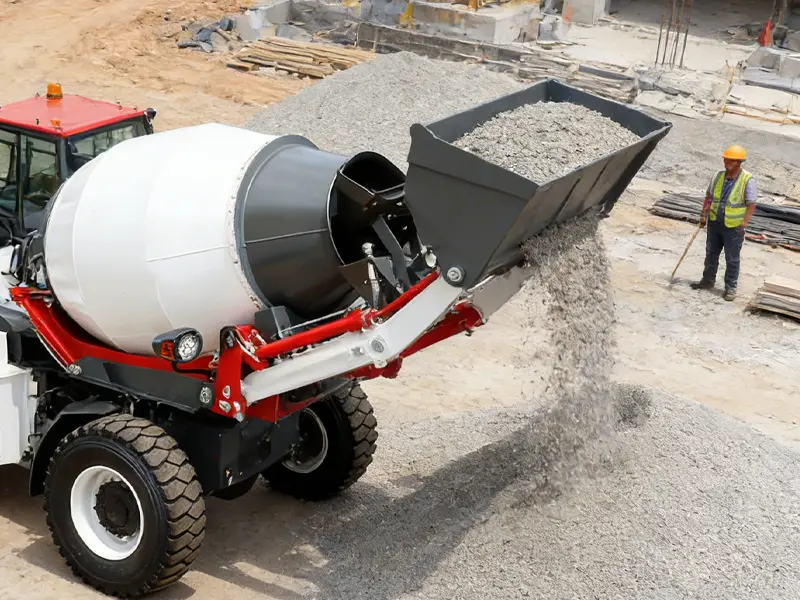

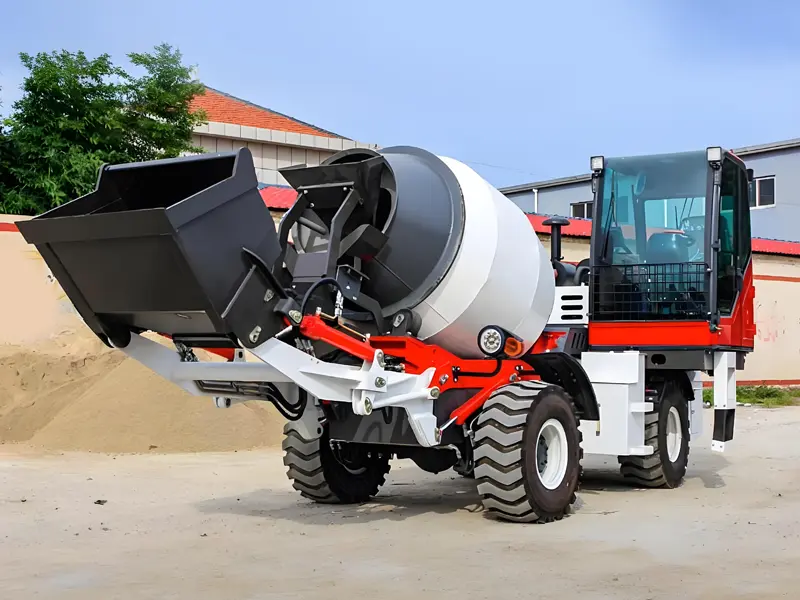

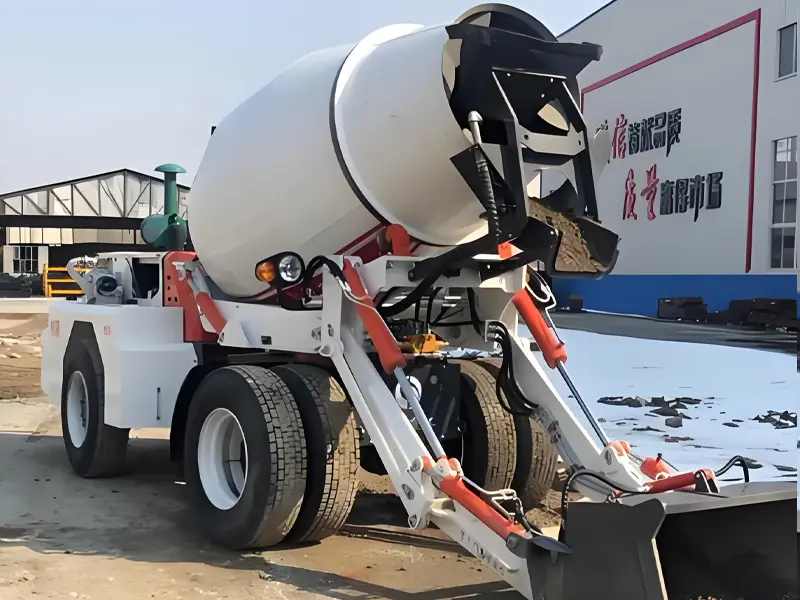

- Automatic Loading: Hydraulically driven buckets directly scoop sand and gravel aggregates from the ground and feed them into the mixing drum, enabling autonomous, continuous material feeding.
- Metering Control: Water and aggregates undergo quantitative control via metering devices, ensuring precise dispensing according to preset ratios for consistent concrete quality.
- Mixing Operation: The engine drives the mixing drum rotation through the hydraulic system. Internal blades thoroughly blend materials to achieve uniform concrete formation.
- Transportation and Travel: The vehicle can travel while mixing, utilizing the chassis power system to simultaneously mix and transport, enhancing construction efficiency.

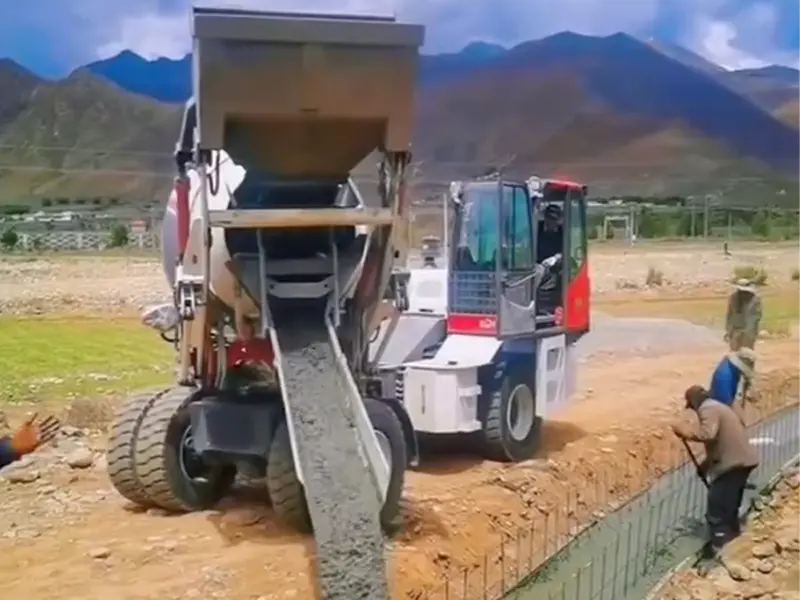

- Flexible Discharge: By controlling the mixing drum’s reverse rotation or adjusting the discharge chute, concrete can be quickly and accurately discharged to the designated location.
- Hydraulic Coordination: The hydraulic system centrally controls loading, mixing, steering, and unloading operations, ensuring seamless process integration and rapid response.
- Integrated Control: Operators manage all work phases through a centralized control system in the cab, enabling automated workflow.
Videos Show
Focus on the core performance and practical applications of construction machinery. Watch the video to better understand the equipment’s dynamic demonstrations, technical breakdowns, and operational scenarios, providing a clear visual of its advantages.
types of Self-Loading Concrete Mixer Truck
Based on structure and usage, self-loading concrete mixers can be primarily categorized into the following types:
1500 Self-Unloading Concrete Mixer
Compact and agile, ideal for rural self-built homes, small-scale construction projects, and confined worksites.
3200 Self-Unloading Concrete Mixer
Balances efficiency and mobility, suitable for municipal projects, road construction, and medium-to-small concrete operations.
5500 Self-Unloading Concrete Mixer
Large-capacity, high-efficiency design for pouring demands in infrastructure and industrial site projects.
6500 Self-Unloading Concrete Mixer
Heavy-duty configuration suitable for large-scale projects, bridge construction, and high-intensity continuous operations.
Details Show

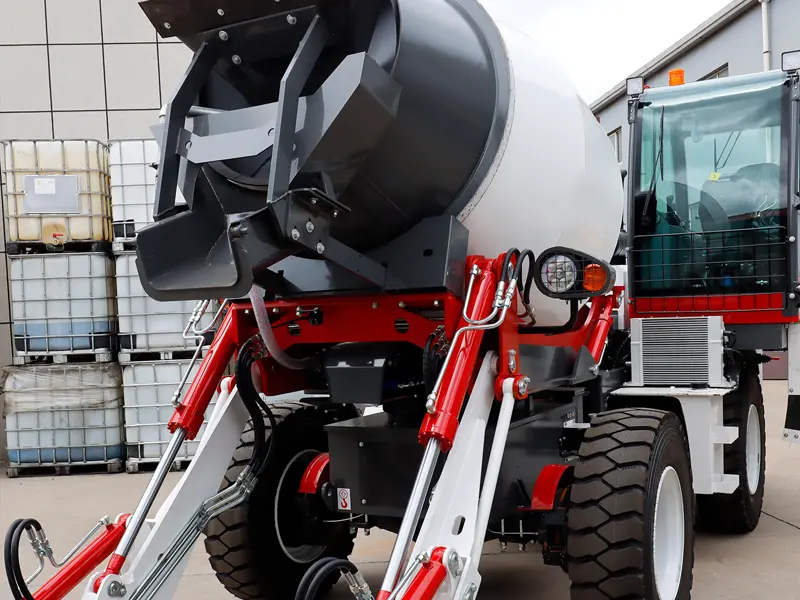

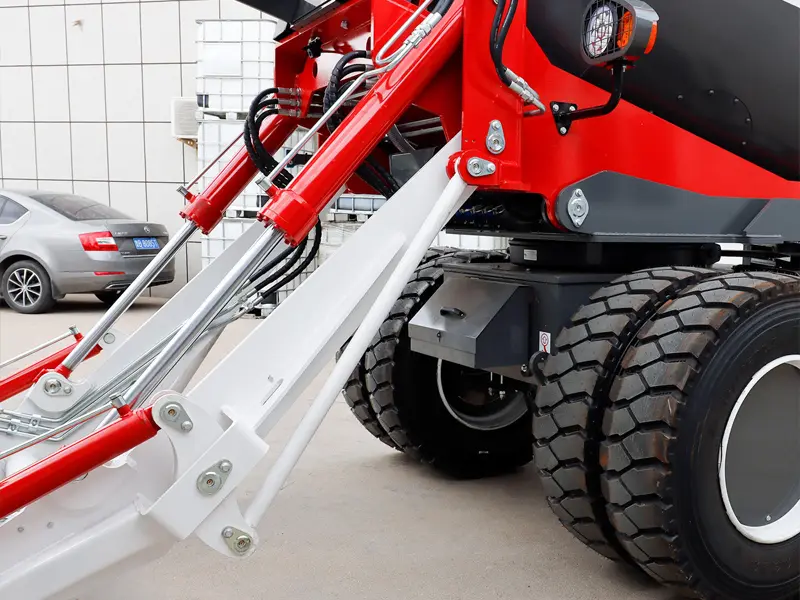

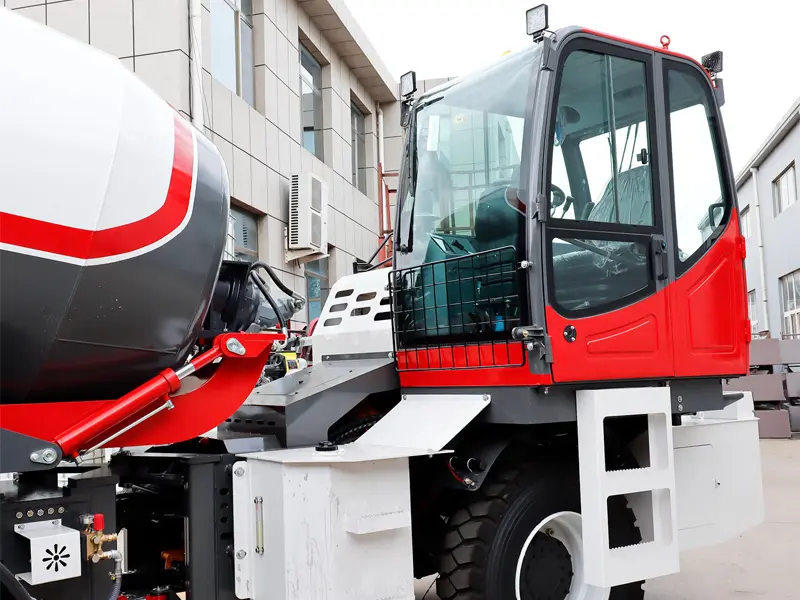

From robust tires to precision valve assemblies, and down to the ergonomic operator’s cab, every detail of the self-unloading mixer truck is engineered for efficient construction.
Specifications
The self-loading mixer truck series comes standard with 4×4 all-wheel drive and hub reduction axles, powered by a turbocharged diesel engine. The mixing drum rotates at ≥15 revolutions per minute, with a maximum travel speed of 25 km/h. It integrates automatic loading, mixing, and transportation functions into one unit.
Parameters
| Parameter Item | 1500 | 3200 | 5500 | 6500 |
| Machine size (mm)(Lifting arm/Drop arm) | 5050x2350x3500/6400x2350x2730 mm | 5900x2400x3900/7100x2400x2940 mm | 6760x2800x4100/7670x2800x3200 mm | 6970x2850x4320/8420x2850x3260mm |
| Wheelbase (mm) | 2180 mm | 2300 mm | 3200 mm | 3200 mm |
| Engine | Yunnei490 supercharged | Yuchai4102 supercharged | 4108 Supercharged/6105 supercharged countryll | Yuchai6105 supercharged country ll |
| Power(Kw) | 55 Kw | 78 Kw | 91/92 Kw | 92 Kw |
| Gearbox | 265 integral | 280 integral | 280/315 Separated type | 315 Separated type |
| Tires | 20.5-16 | 16/70 R22.5 | 16/70 R22.5 Double tire | 16/70 R22.5 Double tire |
| Bucket capacity (m³) | 0.35 m³ | 0.5m³ | 0.65 m³ | 0.65m³ |
| Mixing capacity (m³) | ≥0.9 m³ | ≥1.8m³ | ≥3.3 m³ | ≥3.8m³ |
| Reduction ratio | 1:24 | 1:28 | 1:28 | 1:103 |
Features of the self-loading concrete mixer machine
Integrated Loading and Unloading
Independently completes loading, mixing, transportation, and unloading.
Precise Metering Control
Automatic measurement of water and materials ensures stable and reliable concrete mix ratios.
High Mobility
Four-wheel drive and compact body design adapt to complex conditions and confined spaces.
Continuous Mixing and Transport
Mixes while moving to guarantee concrete uniformity and construction quality.
Reduced Labor Costs
Automated operation minimizes manual input while boosting construction efficiency.
Wide Application Range
Suitable for building construction, road projects, bridges, and water conservancy.
Application Self-Loading Concrete Mixer Truck
Self-loading concrete mixer trucks integrate self-loading, mixing, transportation, and unloading functions, offering high mobility and efficiency. They are widely applicable for various small-to-medium-sized and dispersed construction projects, enabling independent concrete operations in environments without fixed batching plants or where construction sites are constrained.

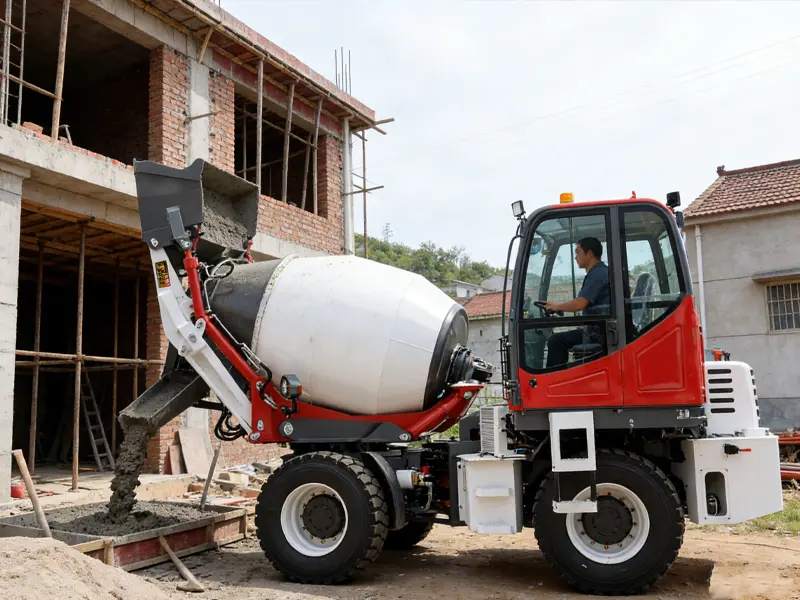

Building Construction Projects
Concrete pouring at construction sites for residential complexes, villas, factory buildings, and similar structures.
Municipal Road Construction
Paving and repair operations for urban roads, rural highways, sidewalks, and similar infrastructure.
Bridge and Tunnel Engineering
Continuous pouring or remote pouring points where concrete transportation is challenging, such as bridge piers and tunnel linings.
Water Conservancy Projects
Concrete pouring for river regulation, reservoir dams, pumping stations, and irrigation channels.
Rural and Remote Area Development
Infrastructure and farmhouse construction in dispersed locations where establishing batching plants is impractical.
Small-Scale Industrial and Park Projects
Concrete construction for factory premises, warehouses, parking lots, landscaping, and greenery.
custom Self-Loading Concrete Mixer Truck
Self-Loading Concrete Mixer Truck supports flexible customization starting from a minimum order of 1 unit. From body color and brand branding to core components, functional modules, and even chassis and tires adapted for narrow/mountainous terrain, everything can be tailored to your needs. Packaging, after-sales service, and certifications can also be aligned with your market requirements, ensuring the equipment precisely fits your construction scenarios.
Customization Options
- Basic Customization Options
Logo / Appearance: Supports customization of brand logos, body graphics, and colors (minimum order quantity: 1 unit).
Packaging: Customizable packaging solutions based on shipping requirements (e.g., export-grade wooden crates / bulk shipping). - Configuration Customization
Core Components: Optional selection of engines (e.g., Yuchai), hydraulic pumps, gearboxes, and other core assemblies from various brands.
Function Modules: Adjustable mixing capacity (for diverse project needs), enhanced weighing system accuracy, extended discharge angles (e.g., 270° hydraulic rotating discharge).
Adaptable Scenarios: For confined/mountainous terrain, customize chassis dimensions, tire types (off-road tires), minimum turning radius, etc. - Service Customization
After-Sales Support: Negotiable extended warranty periods, customized on-site maintenance services.
Documentation Standards: Tailored to target market requirements, including locally compliant certifications and instruction manual languages.
Certificates
From internationally recognized compliance certifications to proprietary intellectual property achievements, our comprehensive qualification system provides dual assurance for product quality, regulatory compliance, and technological innovation. Having passed rigorous audits by authoritative bodies, we meet global market access standards while leveraging proprietary patented technologies to fortify our products’ core competitiveness. Every piece of equipment we provide comes with reliable certification as a guarantee.
Self-loading Concrete Mixer Machine Manufacturer and Supplier
Snowy Owl is a professional self-loading concrete mixer machine manufacturer and supplier with over 10 years of experience in engineering machinery production. Leveraging robust manufacturing capabilities and a comprehensive quality management system, we provide high-performance, stable, and reliable self-dumping concrete mixer solutions to global customers. With our experienced R&D team, we offer flexible customization services, including mixing capacity, drive configurations, power systems, batching control systems, and operating environments, enabling equipment application across diverse construction scenarios. All self-dumping concrete mixers are manufactured to international standards, holding multiple certifications, including ISO 9001 and CE, along with several technical design patents. This guarantees exceptional quality, safety performance, and long-term durability.
For further information or customized solutions, please contact our professional technical team.
