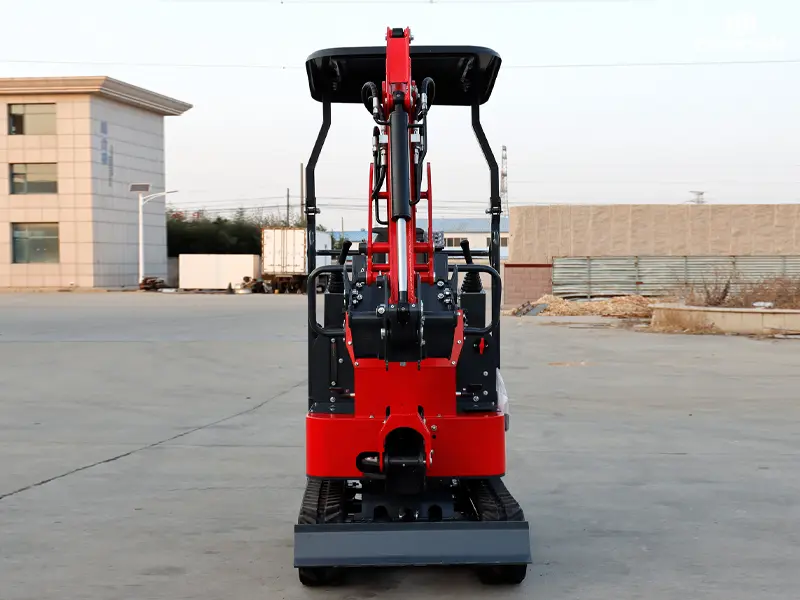

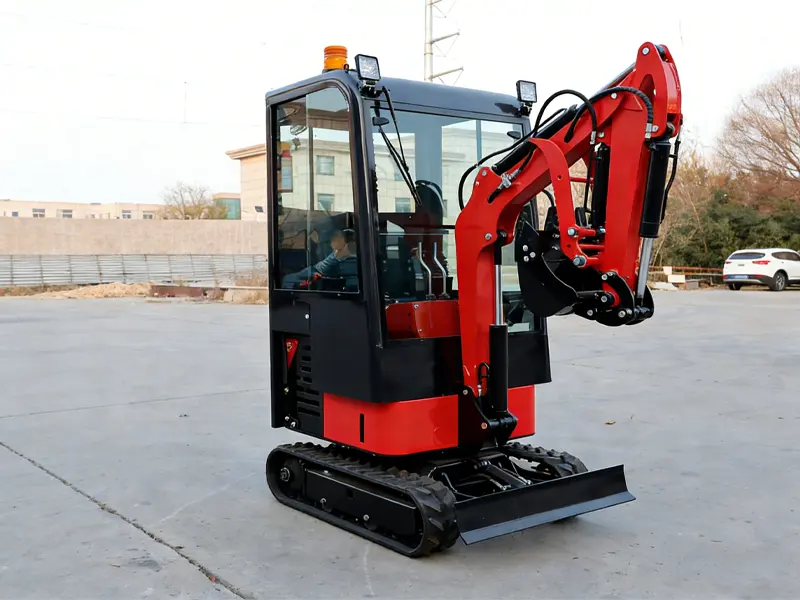

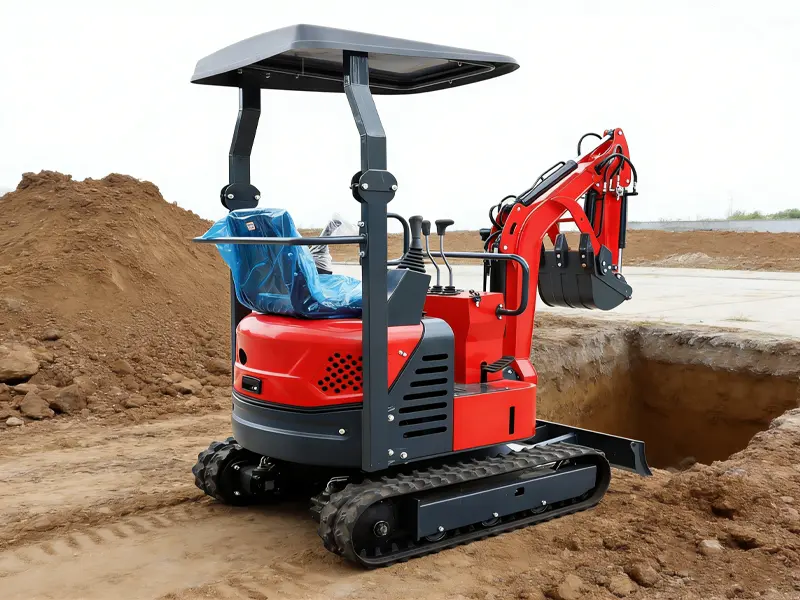

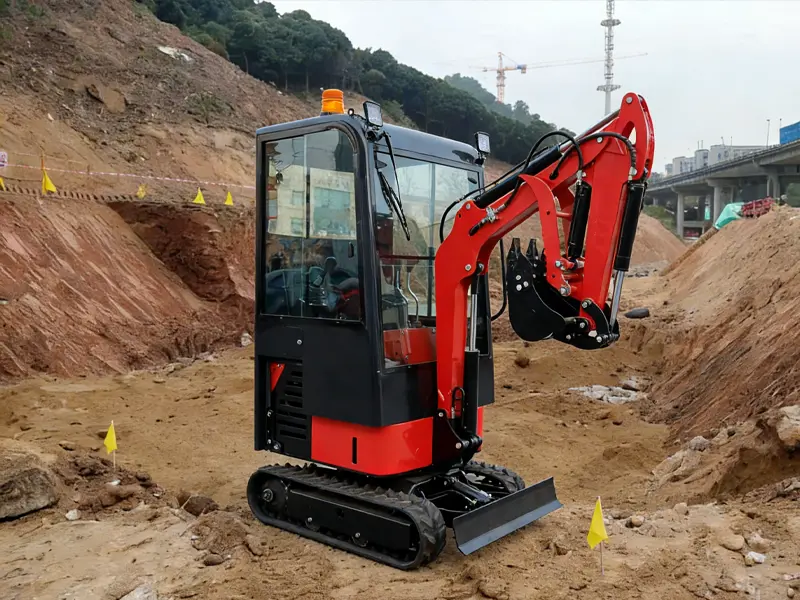

Mini Excavators for Narrow Worksites
Mini Excavators (also known as compact excavators) are compact, highly maneuverable construction machines designed for confined spaces and precision operations. Combining multiple functions such as digging, backfilling, and grading, they feature simple operation, low energy consumption, and easy transport. These machines are widely used in municipal projects, landscaping, agricultural work, pipeline laying, and residential construction. With high performance, stability, and a wide range of attachments available, mini excavators enhance construction efficiency while effectively reducing overall operating costs. They are the most popular choice for small-scale projects and urban construction.
|
Parameter |
Specification |
|---|---|
|
Form Factor(mm) |
2200*930*2250 |
|
Maximum Digging Depth(mm) |
1630 |
|
Power(W) |
29kw |
|
Weight（kg） |
1200kg |
|
Hydraulic tank capacity(L) |
16L |
Introduct
A micro excavator generally weighs between 1 and 6 tons, has a small volume, and can enter narrow spaces. With a 10-50 HP diesel engine, the power is enough to meet the needs of various operations. At the same time, the fuel consumption is relatively low, and the economy is good. Micro digging can be equipped with a variety of working accessories, such as bucket rod, bucket, crushing hammer, etc.

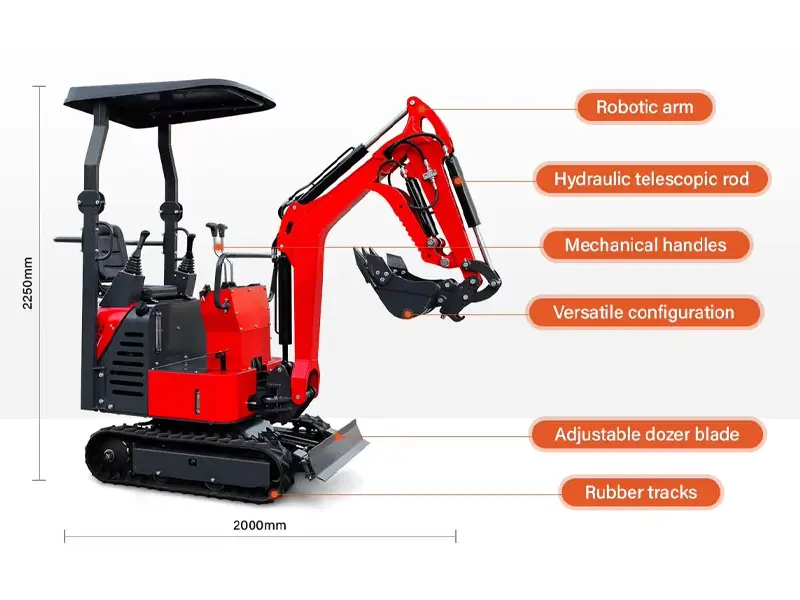

Structure of Mini Excavator
- Working Equipment: Boom, dipper arm, bucket, used for excavation, loading, and backfilling operations.
- Swing Mechanism: Slewing ring, swing motor, enabling 360° rotation of the upper structure.
- Travel Mechanism: Tracks, idler wheels, drive wheels, and guide wheels, ensuring stable movement.
- Power System: Diesel engine or electric motor, providing power to the entire machine.
- Hydraulic System: Hydraulic pump, control valves, hydraulic cylinders, and hydraulic hoses for motion control.
- Operator and Control System: Cab or operator platform, control levers, and instrumentation.
- Frame and Chassis: Lower frame and upper frame supporting the entire structure and components.
- Electrical System: Wiring harnesses, control modules, lighting, and warning devices
- Attachments (Optional): Breaker, drill rig, grab, quick coupler, etc.
Working principle of Mini Excavators
Compact excavators are powered by engines or electric motors, driving hydraulic pumps to generate high-pressure hydraulic fluid. This fluid is distributed through the hydraulic control system to the boom, dipper arm, bucket, swing mechanism, and travel system, enabling operations such as digging, swinging, and traveling. The entire operation is flexible, coordinated, and highly efficient.
Videos Show
Focus on the core performance and practical applications of construction machinery. Watch the video to better understand the equipment’s dynamic demonstrations, technical breakdowns, and operational scenarios, providing a clear visual of its advantages.

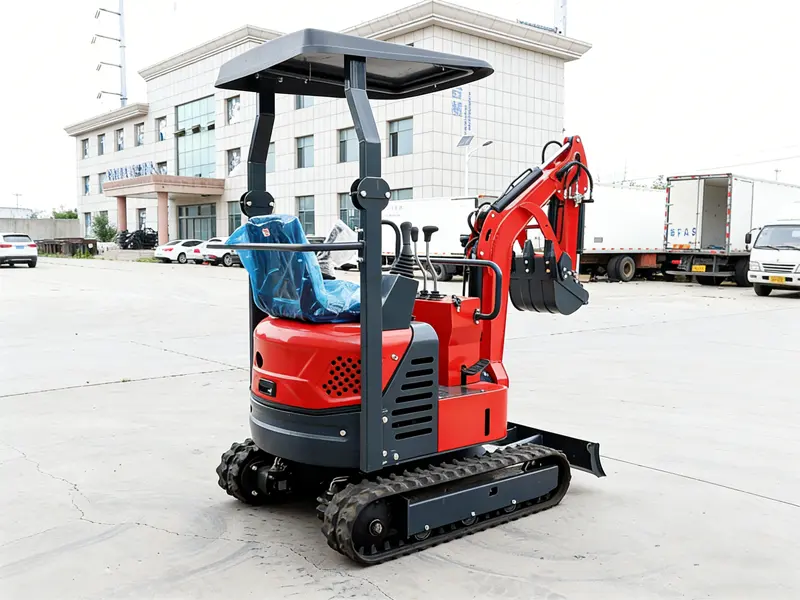

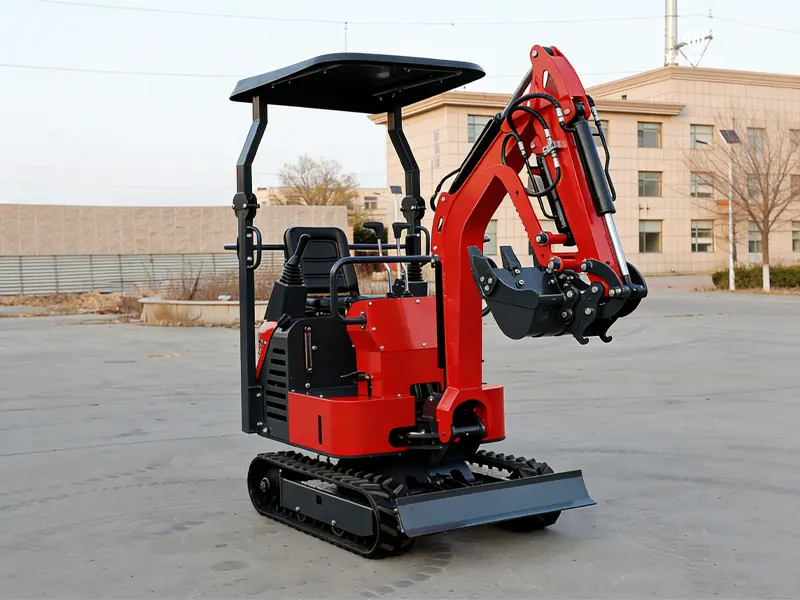

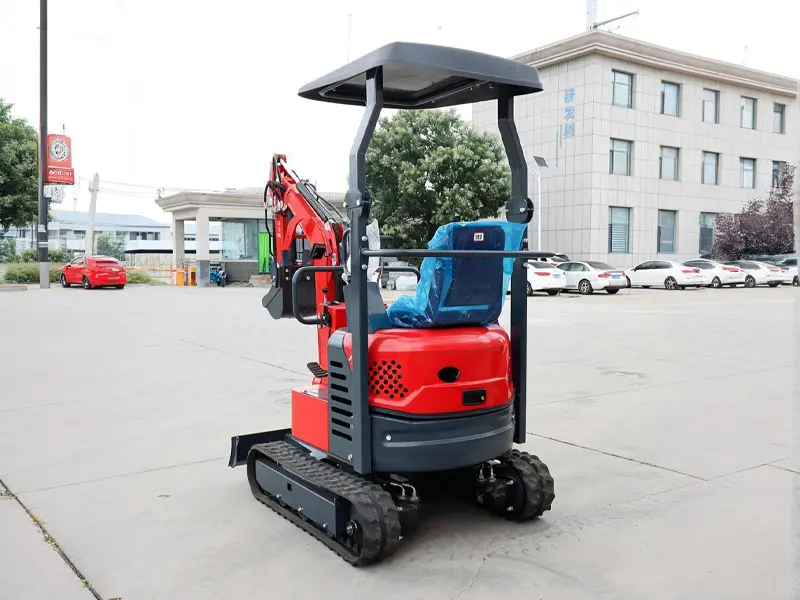

Details Show

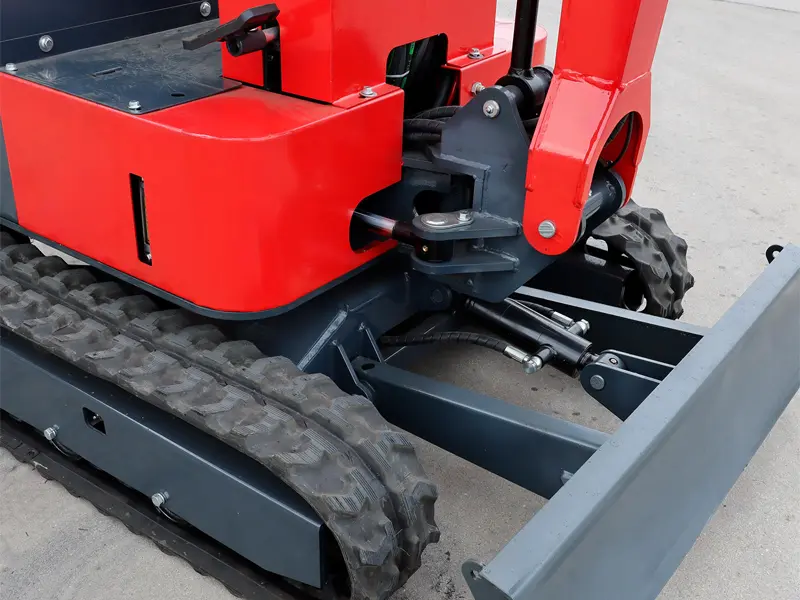

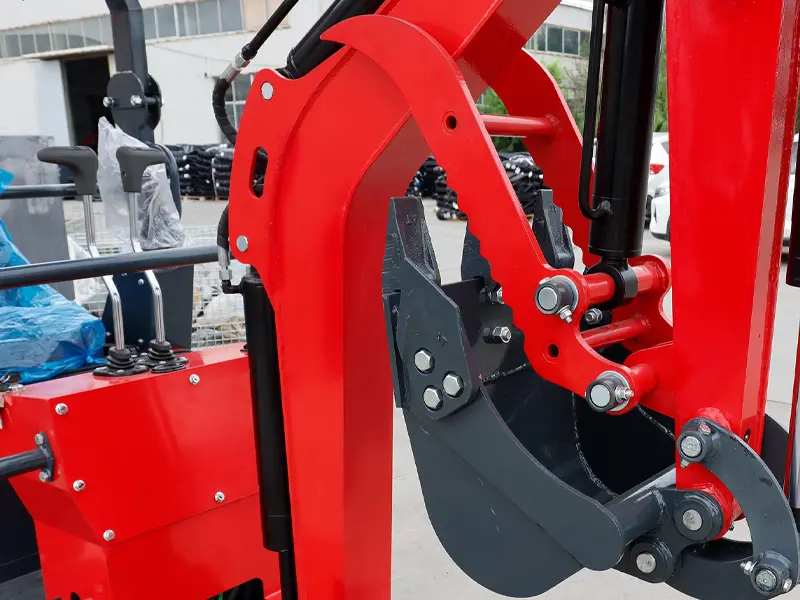

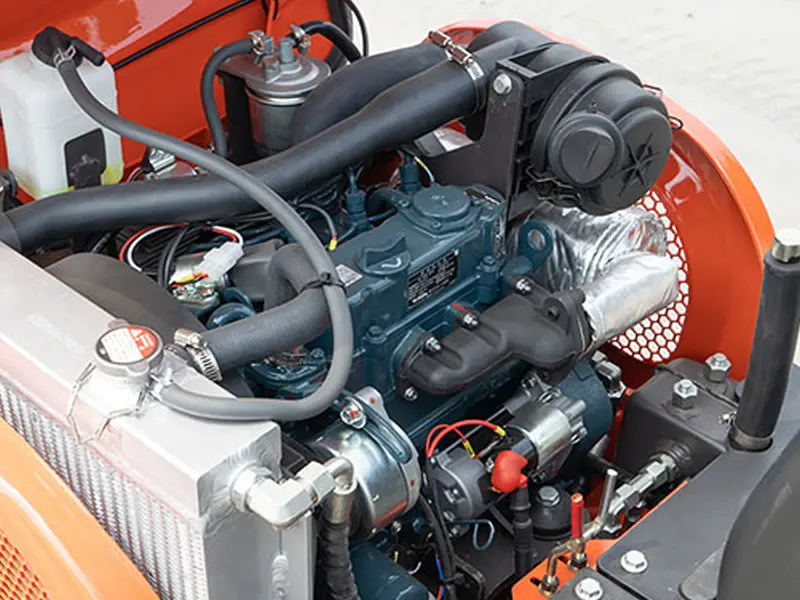

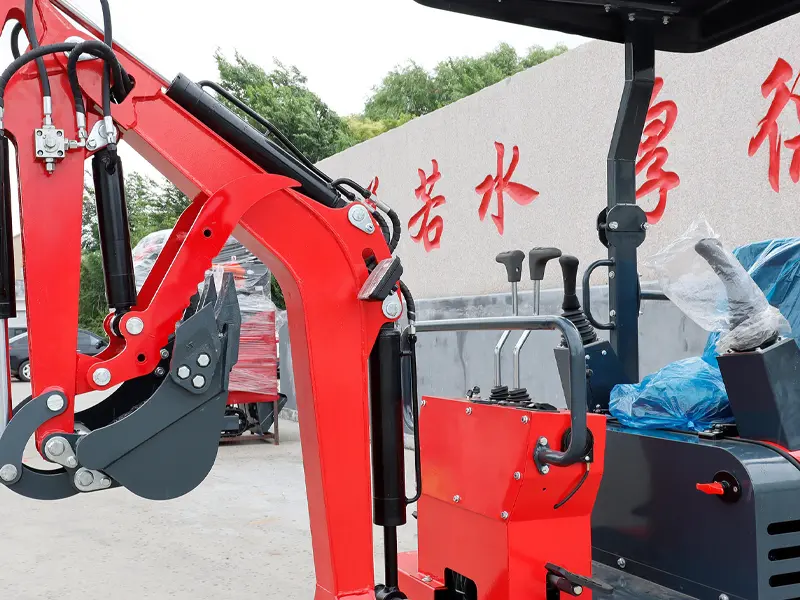

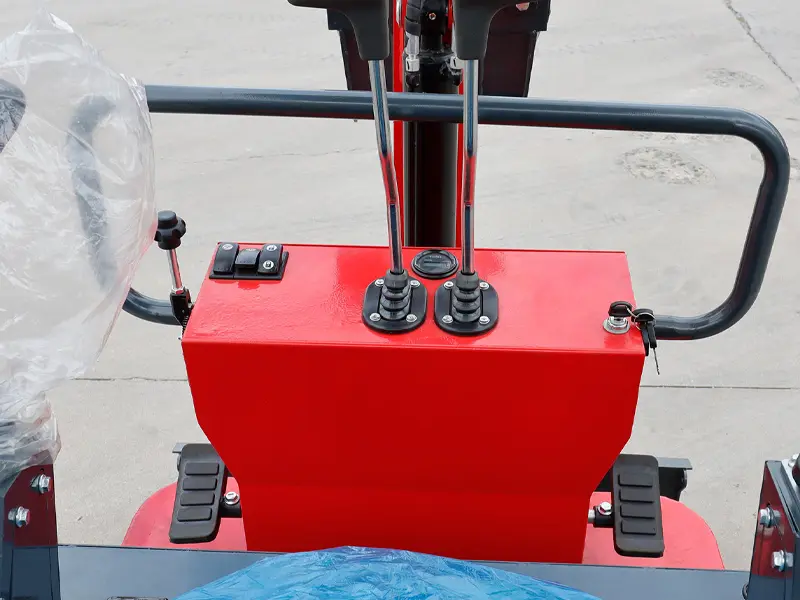

The detail showcase module for compact excavators highlights structural strength, operational stability, and user experience. It emphasizes the reinforced welded boom and undercarriage, wear-resistant and easy-to-maintain attachments, a well-designed hydraulic system with protective features, and a comfortable, intuitive operator compartment. Below are the Details Show:
Specifications
Key technical specifications for compact excavators cover critical information, including overall dimensions, power systems, hydraulic configurations, and operational performance. These can be customized and configured according to specific requirements. Should you have special parameter specifications or require further technical details, please feel free to contact our professional team at any time for comprehensive support and tailored solutions.
Parameters
| Form factor(mm) | 2200*930*2250 |
| Engine model | KepuKD 192F |
| Engine speed(rpm) | 3000 |
| Hydraulic tank capacity(L) | 16 |
| Maximum digging depth(mm) | 1630 |
| Maximum digging height (mm) | 2750 |
| Maximum unloading height(mm) | 1960 |
| Maximum digging radius(mm) | 2900 |
| Minimum radius of turn(mm) | 1300 |
| Maximum digging distance(mm) | 2100 |
| Dozer blade lift height(mm) | 180 |
| Dozer blade descent depth(mm) | 210 |
| *The pictures and specifications of this brochure are for reference only, and the actual product shall prevail. | |
Features of compact excavators
Compact structure
The machine is small and takes up little space, allowing for easy operation even in confined areas.
Flexible operation
It has a small turning radius and smooth, continuous movements, making it suitable for precise work.
High efficiency and energy saving
The power system is well-matched, resulting in low fuel consumption and reduced daily operating costs.
Good stability
Low center of gravity design and reinforced track or support structure enhance operational safety.
Convenient maintenance
Key components are clearly laid out, making routine maintenance and repairs effortless.
Easy transportation
The machine is lightweight and can be transported by a regular trailer or small truck.
Application Mini Excavator
Compact excavators are highly sought after in municipal construction, landscaping, farmland reclamation, pipeline laying, residential building projects, and various small-scale construction sites due to their compact size, agile maneuverability, and versatility. Even in confined spaces, they efficiently handle tasks like digging, site leveling, backfilling, and material loading, making them indispensable for small-scale projects and precision construction work. Below are detailed applications：
Municipal Engineering
Road construction, sewer installation, sidewalk paving, etc., are suitable for construction in confined urban spaces.
Landscaping
Tree planting, flowerbed excavation, small-scale earthworks for landscaping, and precise operations to protect the environment.
Agricultural Facilities
Canal excavation, farmland drainage, greenhouse foundation work, and improving agricultural efficiency.

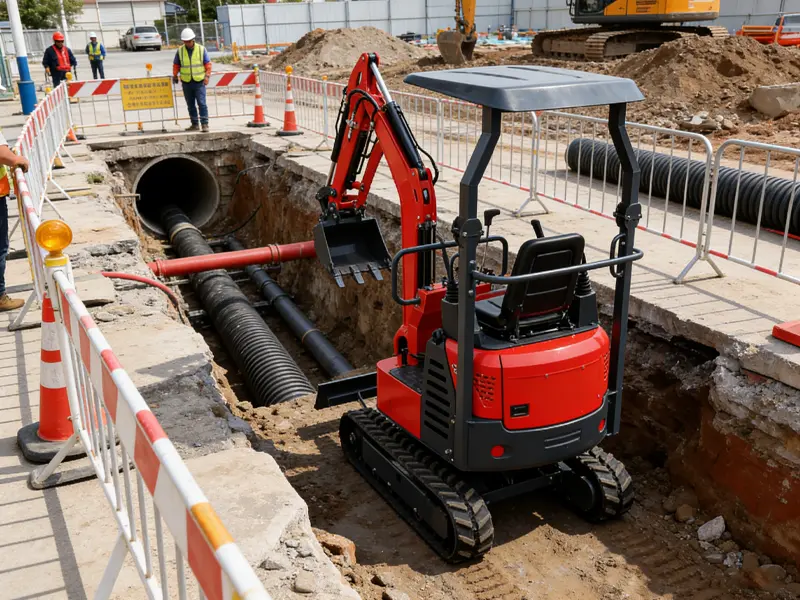

Pipe and Cable Laying
Water pipes, gas pipelines, and cable trench excavation are adaptable to construction environments with limited space.

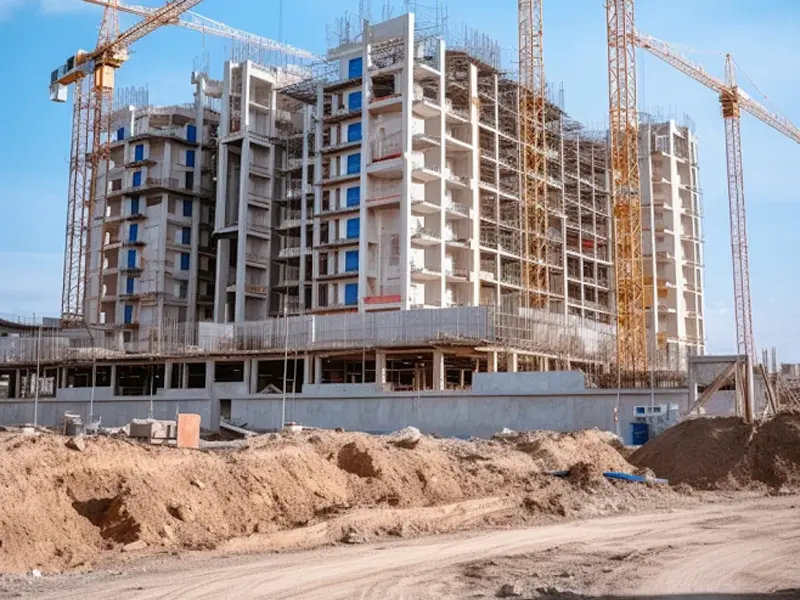

Residential and Building Construction
Small-scale earthworks, yard leveling, foundation excavation, and facilitating diverse operations.
Small Construction Sites and Workplaces
Mechanized operations replace manual labor, increasing efficiency and reducing costs.
custom Mini Excavator
The compact excavator supports multiple customization services, including exterior color options, engine configurations, hydraulic system adjustments, and a variety of attachment choices. This enables users to achieve more efficient, flexible, and project-specific operation solutions while ensuring equipment performance and reliability. Below are detailed custom：
Customization Options
- Color Customization: The machine body color can be selected according to customer requirements, achieving unified corporate branding or personalized appearance design, while also increasing equipment visibility.
- Attachment Customization: Supports the configuration of various work attachments such as buckets, grapples, hydraulic breakers, and quick couplers, meeting the construction needs of different project types and improving the versatility and working efficiency of the entire machine.
- Power and Engine Customization: Select different power and displacement diesel engines or electric motors based on working conditions to meet varying construction intensity and environmental requirements.
- Hydraulic System Customization: Adjustable hydraulic flow and pressure support fast rotation, precise operation, or high-power work, improving operational efficiency and response speed.
- Chassis and Walking System Customization: Track width, wheelbase, and tire type can be adjusted to adapt to different terrains, such as muddy, rugged, or urban paved roads.
- Cab and Control Customization: Options include enclosed/open cabs, air conditioning, seat adjustment, and upgraded instrument displays to improve operating comfort and safety.
Accessories

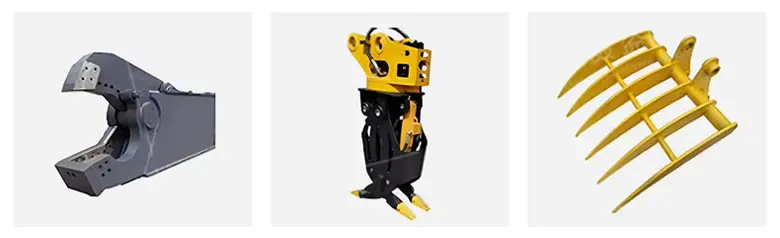

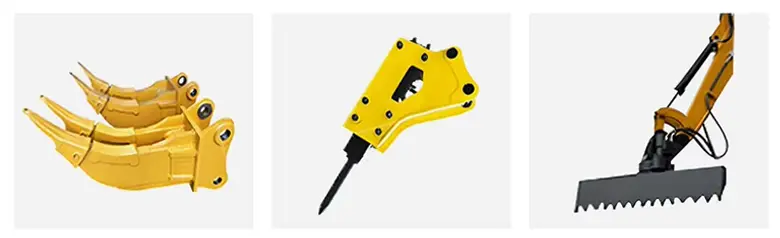

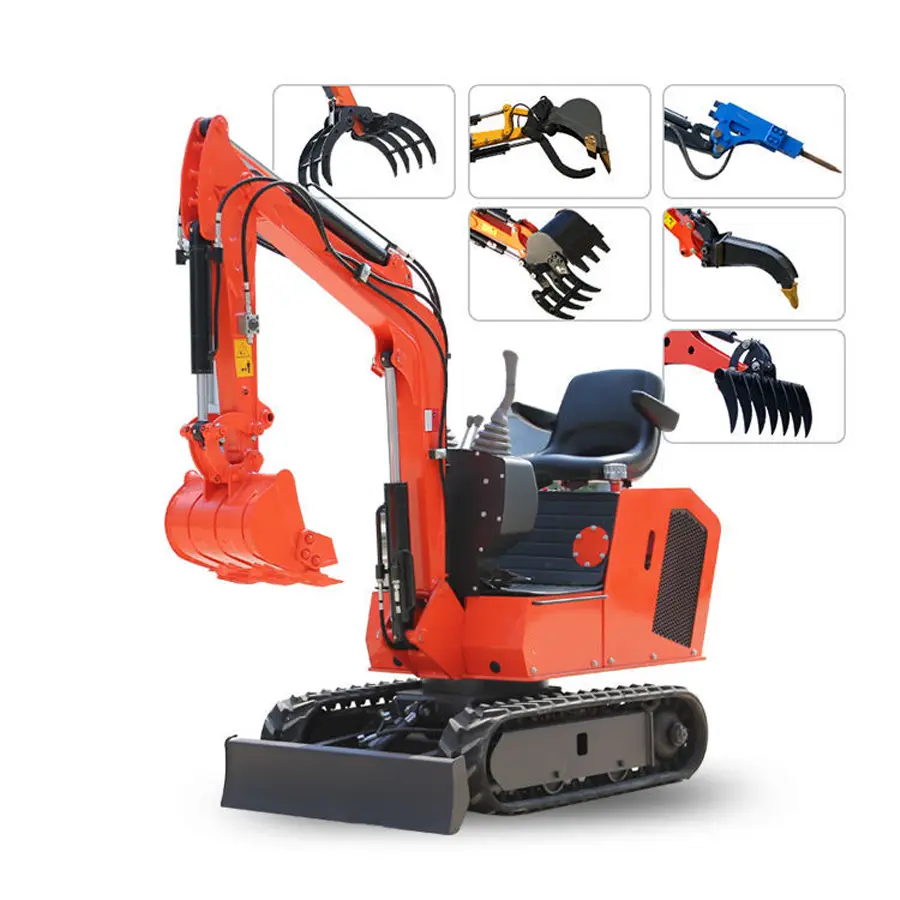

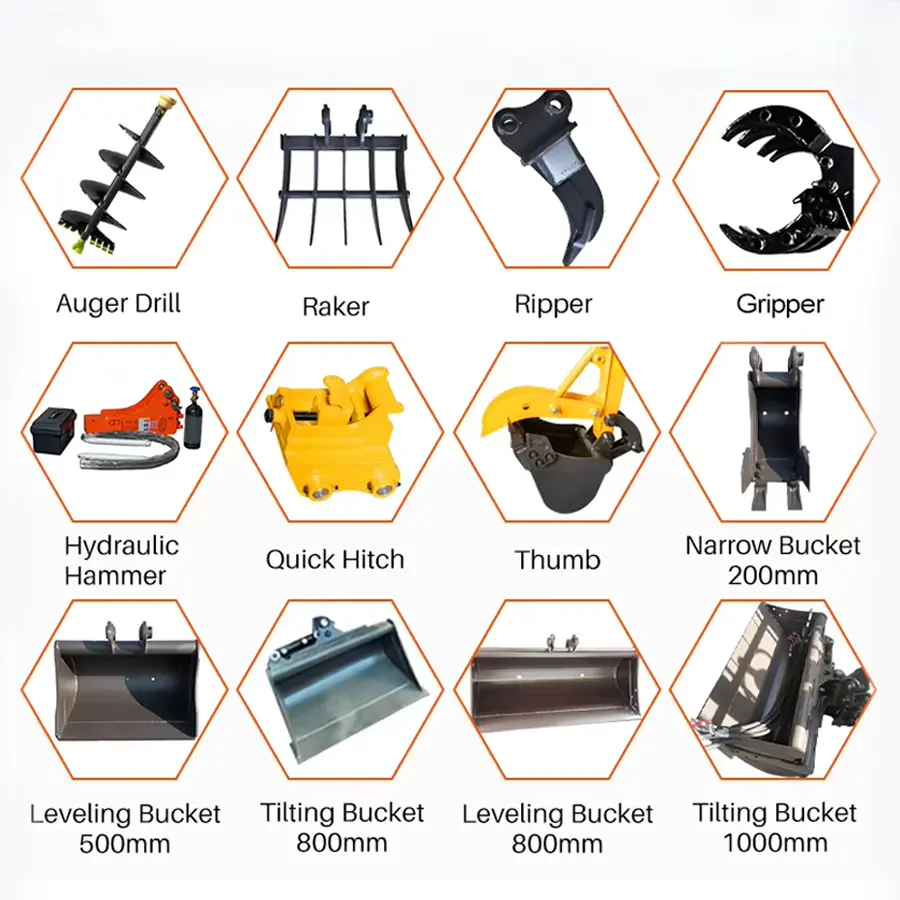

Small excavators are equipped with a wide range of accessories, allowing them to efficiently handle diverse work requirements. From augers for drilling and rakes for soil preparation, to hydraulic hammers for demolition and quick couplers for easy tool changes, and various buckets such as narrow buckets, flat buckets, and tilting buckets to suit different working conditions, as well as grapples, rippers, and thumb clamps, these accessories cover a variety of tasks including drilling, clearing, crushing, grabbing, and leveling.
Certificates
From internationally recognized compliance certifications to proprietary intellectual property achievements, our comprehensive qualification system provides dual assurance for product quality, regulatory compliance, and technological innovation. Having passed rigorous audits by authoritative bodies, we meet global market access standards while leveraging proprietary patented technologies to fortify our products’ core competitiveness. Every piece of equipment we deliver is backed by reliable certification credentials.
Mini Excavator Manufacturer and Supplier
Snowy Owl is a professional mini excavator manufacturer and supplier with over 10 years of experience in engineering machinery production. Backed by strong manufacturing capabilities and a comprehensive quality management system, we deliver high-performance, stable, and reliable mini excavator solutions to customers worldwide. Our experienced R&D team offers flexible customization options to meet specific requirements in machine size, digging depth, engine configuration, hydraulic systems, and operating environments, addressing diverse application needs across different industries.
Our mini excavators are manufactured in accordance with strict international standards and hold multiple certifications such as ISO 9001 and CE, along with a range of design and technical patents, ensuring excellent quality, safety, and durability. Widely used in municipal construction, landscaping, agriculture, residential projects, and small job sites, Snowy Owl mini excavators provide efficient, cost-effective, and versatile construction solutions that help improve productivity and support long-term business growth. For more information, please contact our professional technical team.
