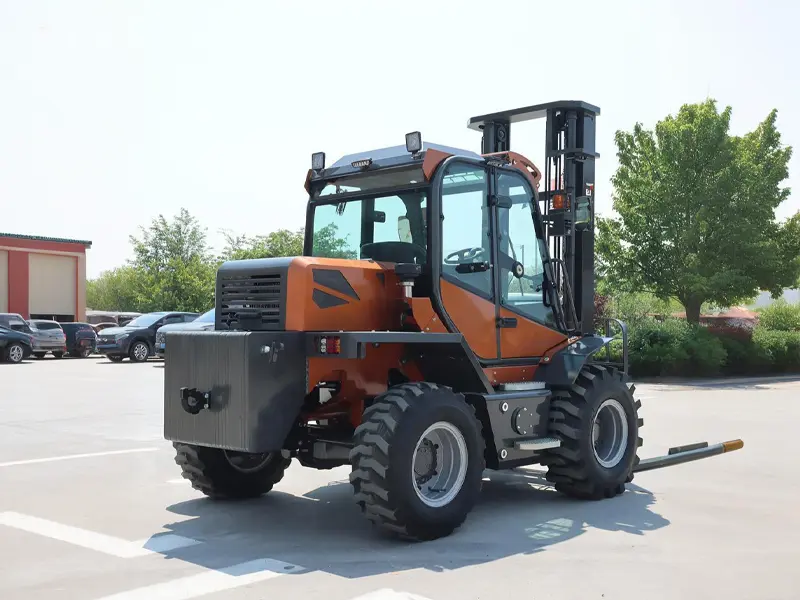

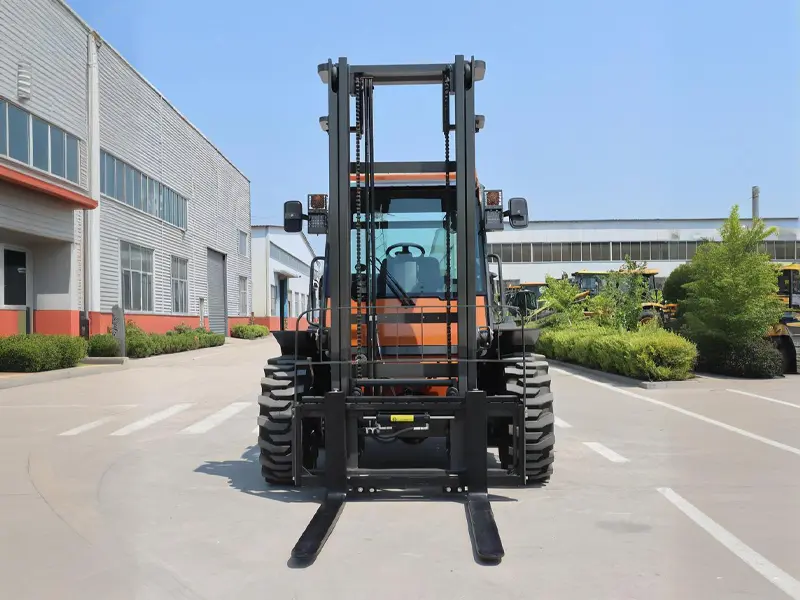

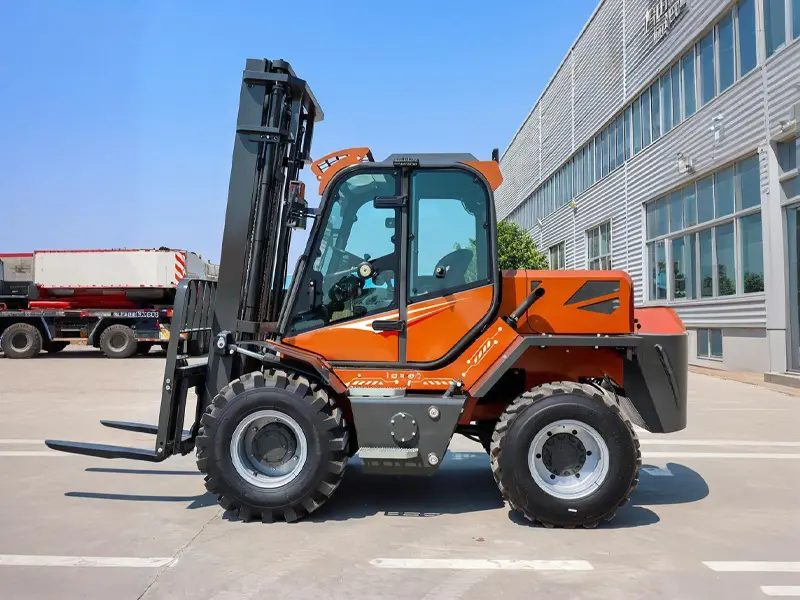

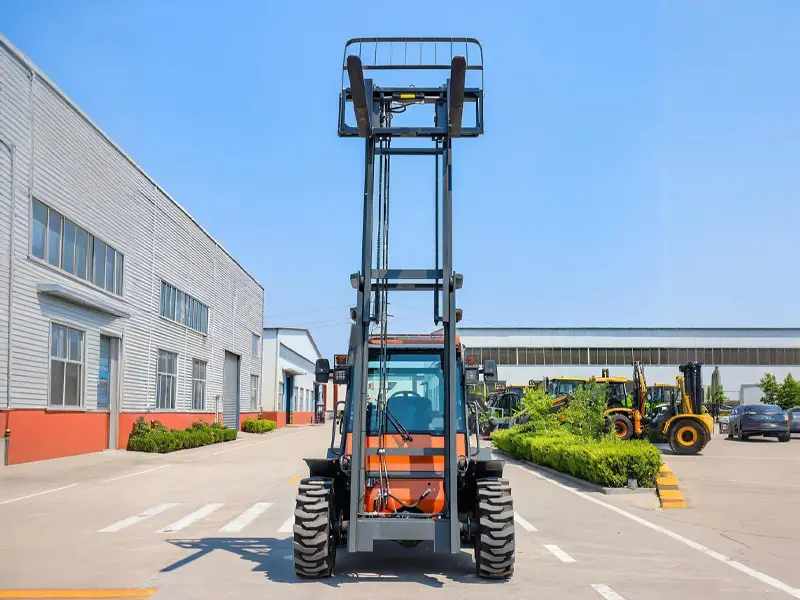

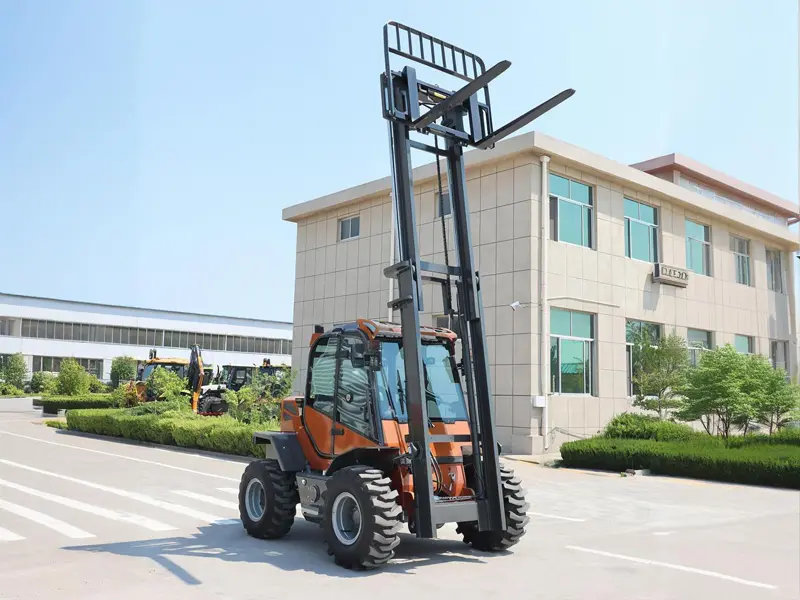

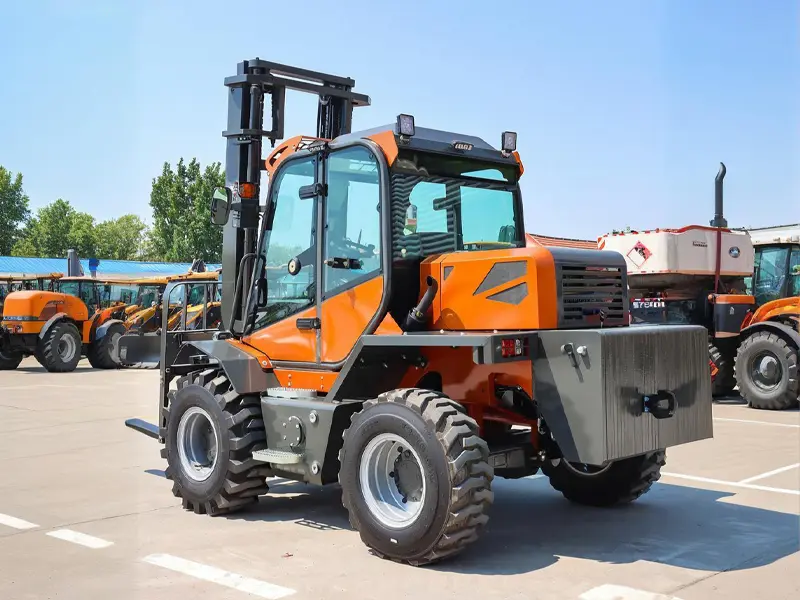

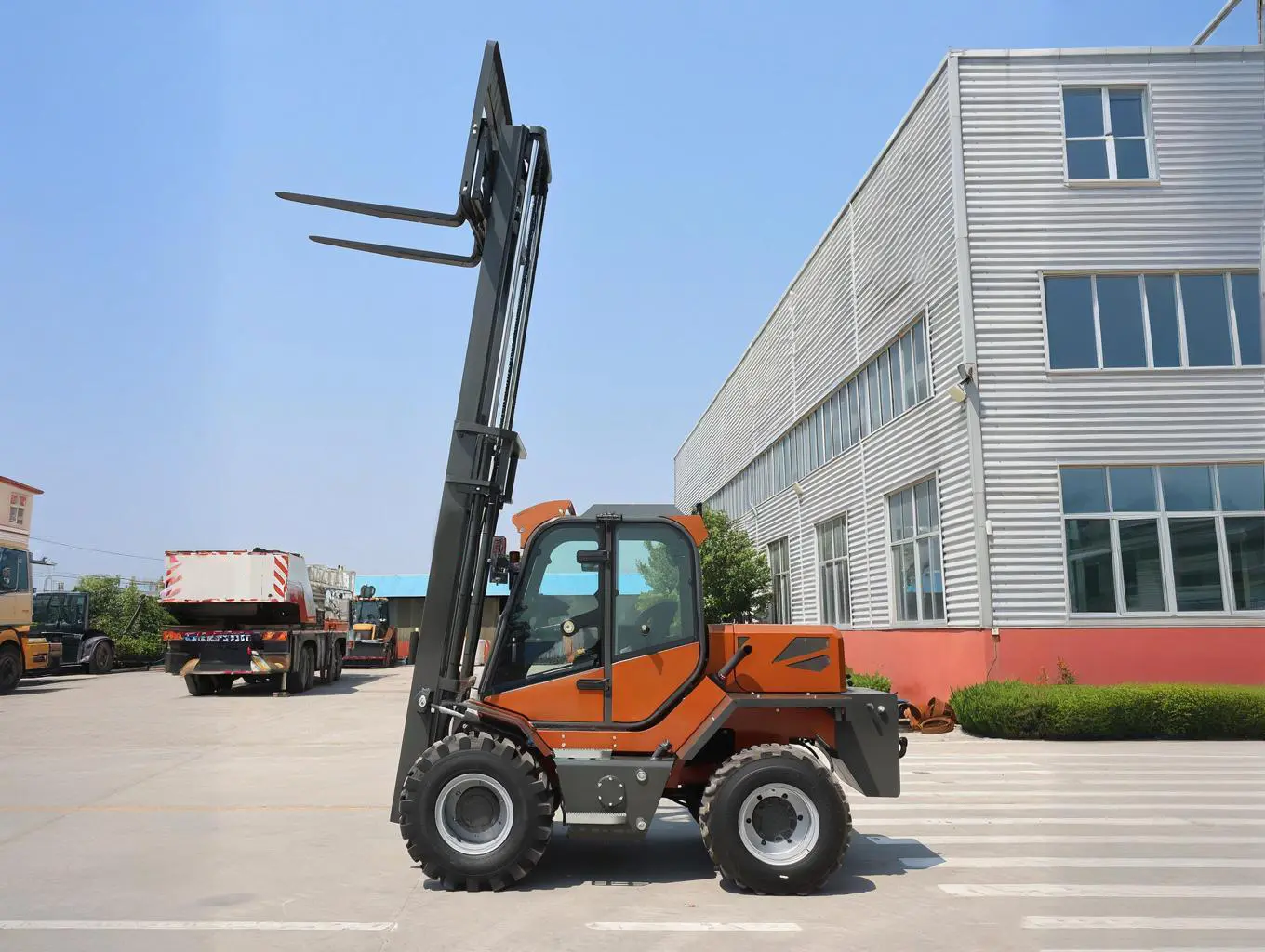

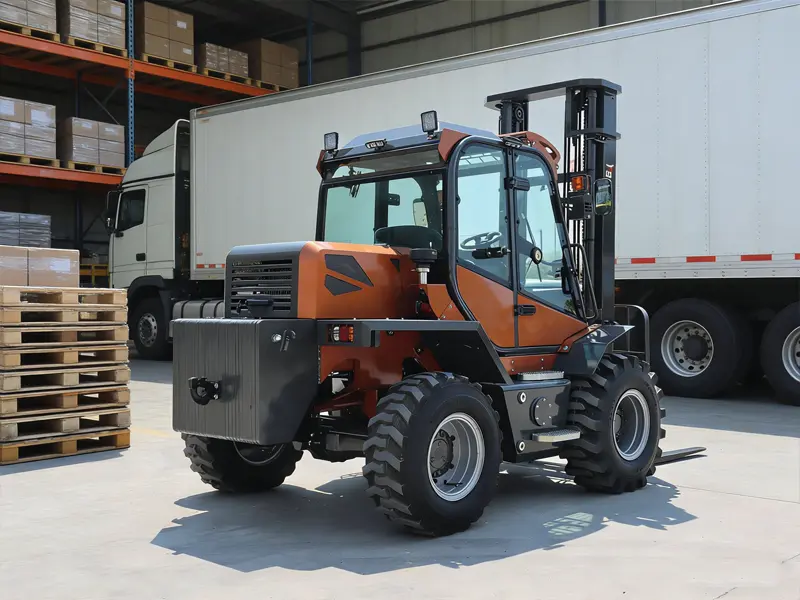

Heavy Duty Off Road Forklift for Outdoor Material Handling
Off-road forklifts are heavy-duty handling equipment specifically engineered for rugged outdoor terrain. Characterized by robust chassis, deep-tread tires or tracks, four-wheel drive, and powerful engines, they deliver exceptional mobility and stability on challenging surfaces like mud and slopes. Primarily deployed in construction sites, mines, ports, and other outdoor environments, they efficiently transport heavy building materials, lumber, and large machinery.
- Model Number: 35-95
- Power Source: Diesel
- Drive Type: 4WD
- Travel Speed ( laden): 35 km/h
- Power(KW): 77
- Engine Type: Yu dong 4102 pressurization
Price: $5,999~$9,999
Introduct
Designed for demanding outdoor environments, this heavy-duty off-road forklift delivers strong traction, high stability and reliable lifting performance on uneven ground.
Structure of the Off Road Forklift
- Power System: High-output diesel engine paired with a hydraulic transmission delivers robust driving force.
- Travel System: Four-wheel drive with off-road tires or tracks, featuring differential locks for rugged terrain.
- Chassis Structure: High-rigidity reinforced frame and rollover-protected cab ensure overall sturdiness and safety.
- Working Equipment: Heavy-duty mast, forks, and high-flow hydraulic system enable material lifting and handling.
- Control System
Cab: Sealed and vibration-dampened, equipped with ergonomically designed controls.
Braking System: Multi-circuit, all-wheel braking, typically featuring emergency and parking brakes.
Safety Equipment: Lighting, warning horns, rearview mirrors, fire extinguishers, etc
Working principle of Off Road Forklift
The engine’s power is converted into traction through robust diesel power and a four-wheel drive system, while a high-pressure hydraulic system drives the mast and attachments, enabling stable operation and heavy-duty material handling across complex terrain.
| Component | Core Component | Functional Role |
| Power and Drive | Diesel engine, four-wheel drive system, off-road tires. | Delivers high torque output, efficiently transferring power to the wheels to provide sufficient traction and mobility on muddy terrain, slopes, and other challenging surfaces. |
| Material Handling | Hydraulic pump, control valve, lift cylinder, mast and forks. | The engine drives the hydraulic pump to generate high-pressure fluid. Through the control valve, the extension and retraction of the cylinders are managed, enabling precise control over mast elevation, tilt, and attachment operations. This facilitates material forklift operations including picking up, lifting, and stacking. |
| Stability and Control | Reinforced Frame, Heavy-Duty Suspension, Steering System, Control Mechanisms. | The robust frame and suspension system withstand ground impacts; the steering system and control levers (pedals) enable the operator to precisely control vehicle movement and work operations, ensuring stability and safety in rough terrain. |
Videos Show
Focus on the core performance and practical applications of construction machinery. Watch the video to better understand the equipment’s dynamic demonstrations, technical breakdowns, and operational scenarios, providing a clear visual of its advantages.
types of Off Road Forklift
The mainstream tonnages for wheeled off-road forklifts include 3 tons, 4 tons, 5 tons, and 8 tons, each designed for outdoor material handling scenarios of varying intensity. Their configurations and performance capabilities increase significantly with each higher tonnage rating. Below are the main types of tire off-road forklift:
3 tons of Off Road Forklift
A versatile all-round model, ideal for farms, small to mid-scale material yards, and outdoor storage operations.
4 tons of Off Road Forklift
The most in-demand mainstay capacity is commonly seen at construction sites and lumber mills.
5 tons of Off Road Forklift
An entry-level heavy-duty option, providing extra power for steel bundles and dense building materials.
8 tons of Off Road Forklift
Classified as heavy equipment, primarily used for heavy-load handling in ports, large factories, and infrastructure projects.
Details Show

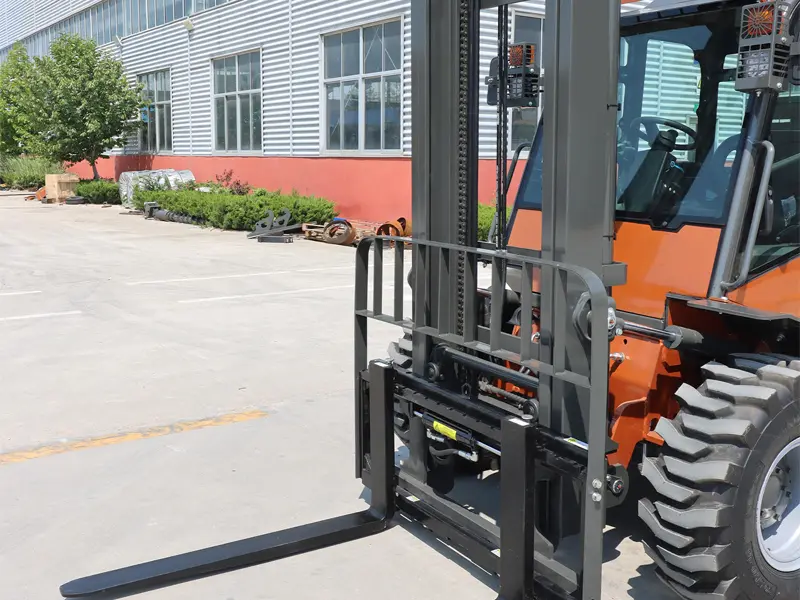

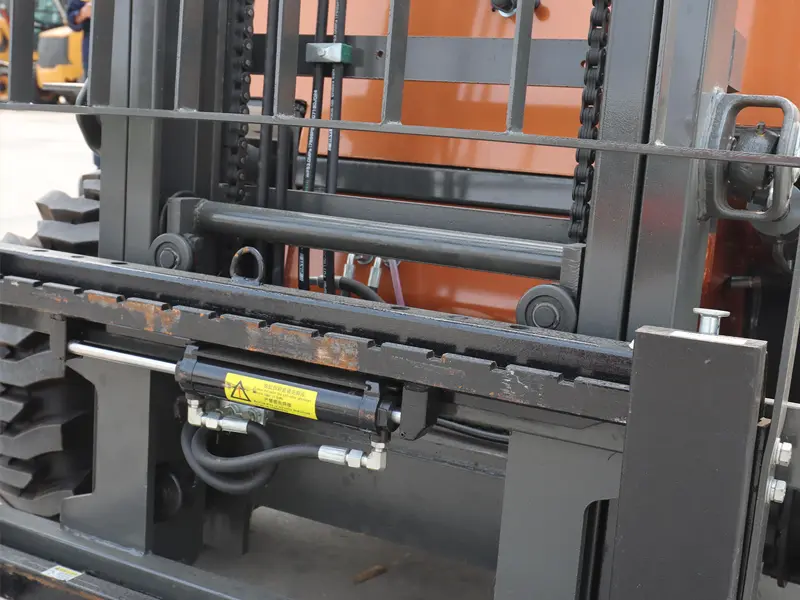

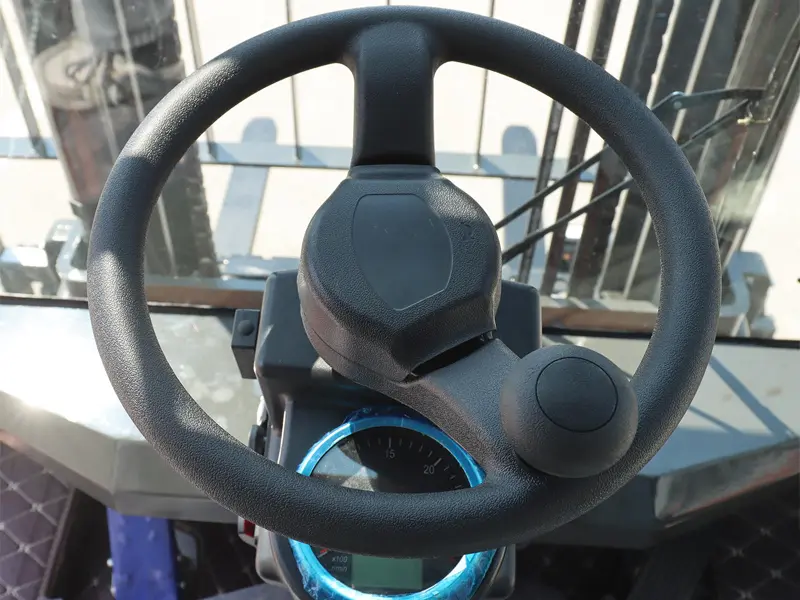

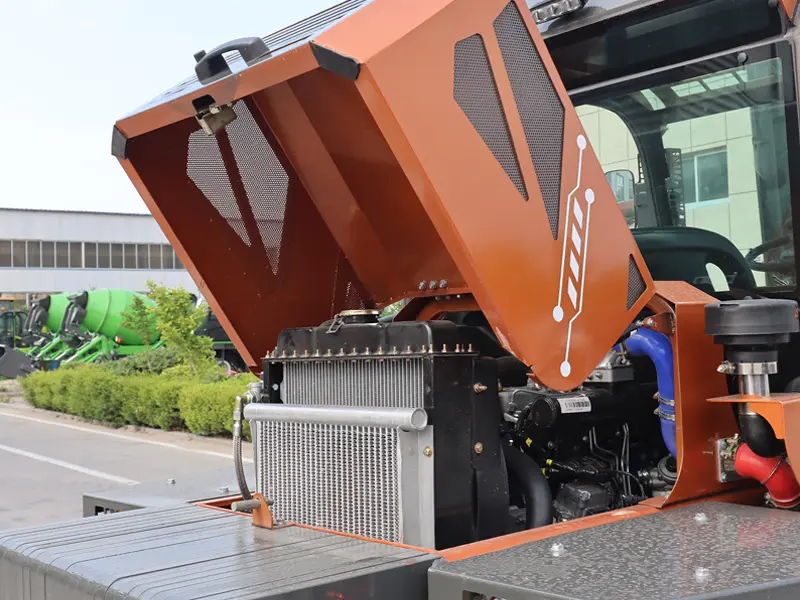

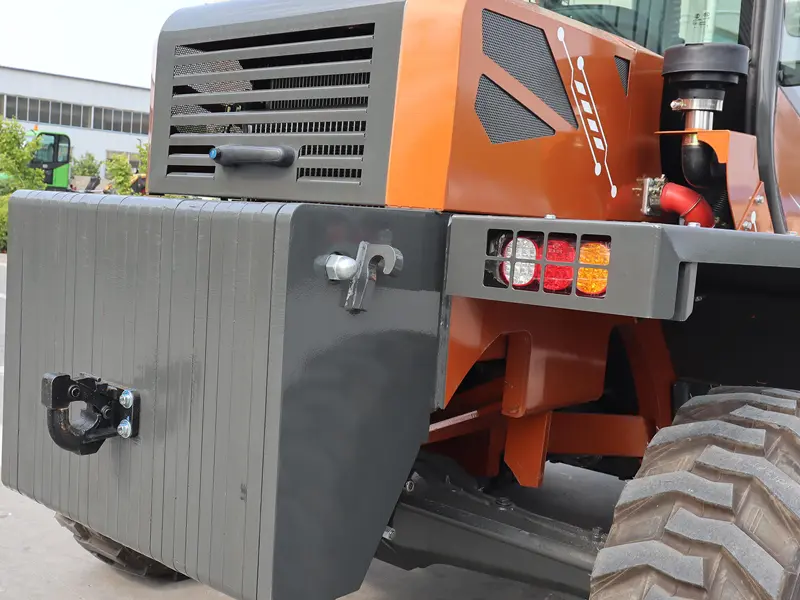

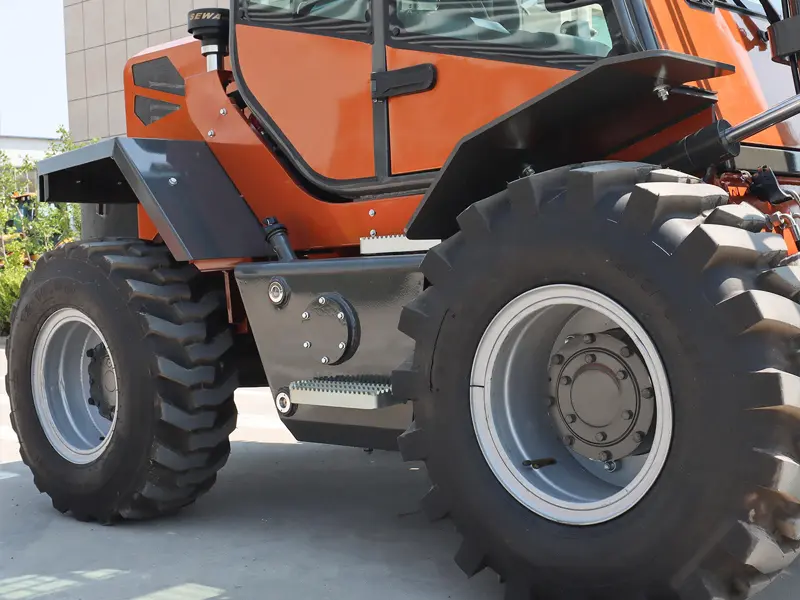

Detailed breakdown of the cab, cooling system, mast, tires, and more—revealing the core capabilities of professional off-road forklifts. Below are details showing the Off-Road Forklift:
Specifications
Off-road forklifts support flexible customization of tonnage, power type, and configurations. Below are the parameter specifications for each model. For selection assistance or technical inquiries, please feel free to contact our professional team at any time.
Parameters
| Condition | New | Place of Origin | Shandong,China |
| Fork Length | 2000mm,1820 mm,1520 mm | Fork Width | 184 mm, 180 mm |
| Forklift Turning Radius | 3800mm | Forklift Wheelbase | 276cm |
| Load Centre Distance | 150cm | Mast Type | Three Stage Mast |
| Power Source | Diesel | Model Number | 35-95 |
| Brand Name | Snowy Owl | Applicable Industries | Farms, Building Material Shops, Machinery Repair… |
| Drive Type | 4WD off road forklift | Fork height,lowered | 5000mm |
| Forklift Tyre | Pneumatic Tire | Operating Mode | Seated Operation |
| Terrain Adaptability | Offroad | Travel speed (laden) | 35 km/h |
| Travel Speed ( unladen) | 35 km/h | Overall dimension(mm) | 4990*2290*2490 |
| Machine Weight(Kg) | 8900 | Wheel track(mm) | 1870 |
| Min.Ground Clearance(mm) | 400 | Wheelbase(mm) | 2750 |
| Min.Turning Radius(mm) | 1870 | Tyre specification | 400/70R24 |
| Engine Type | Yu dong 4102 pressurization | Power(KW) | 77 |
| Cab Width | 820mm | ||
Features of the Off Road Forklift
Strong Terrain Access
Handling muddy, gravelly, and rough terrain.
Heavy Load Stability
Maintains balance and safety under full-load lifting.
High Torque Power
Delivers traction for demanding outdoor tasks.
Rugged Component Protection
Guards key parts in harsh jobsite conditions.
Flexible Configuration Options
Adapts easily to different working demands.
Extended Service Life
Designed for long-term outdoor operations.
Application Off-Road Forklift
Off-road forklifts possess strong terrain adaptability and are widely used in various complex outdoor working conditions, such as construction sites, mines, logging areas, ports, docks, and large farms.

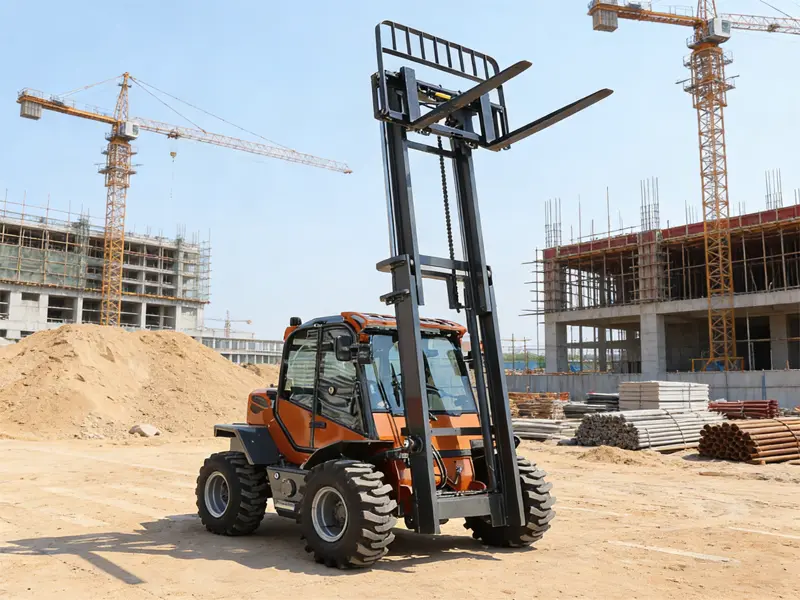

off road forklift for construction sites
Handling bricks, cement, steel, and prefabricated materials on rough and unpaved ground.
Agriculture & Farming
Transporting feed, fertilizers, pallets, and equipment across farms and open fields.

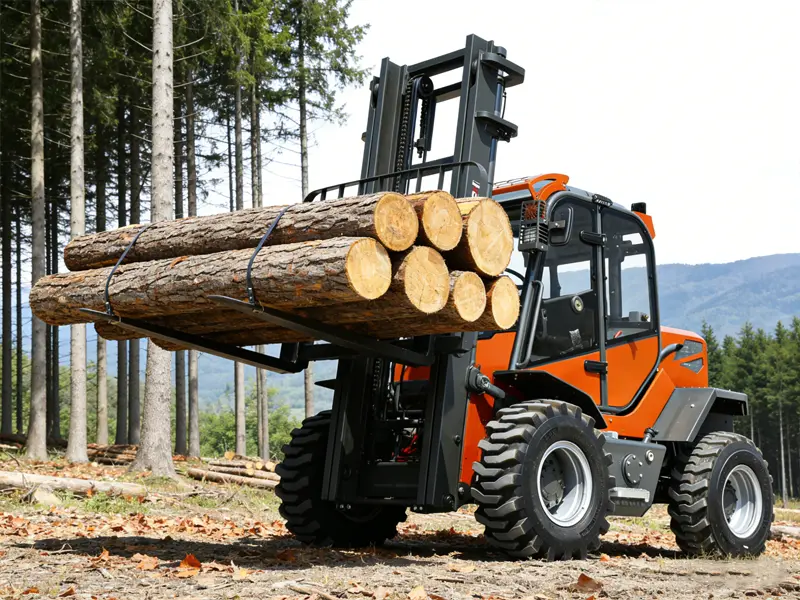

Lumber Yards & Sawmills
Moving logs, timber, and bundled wood materials in dusty and uneven yards.

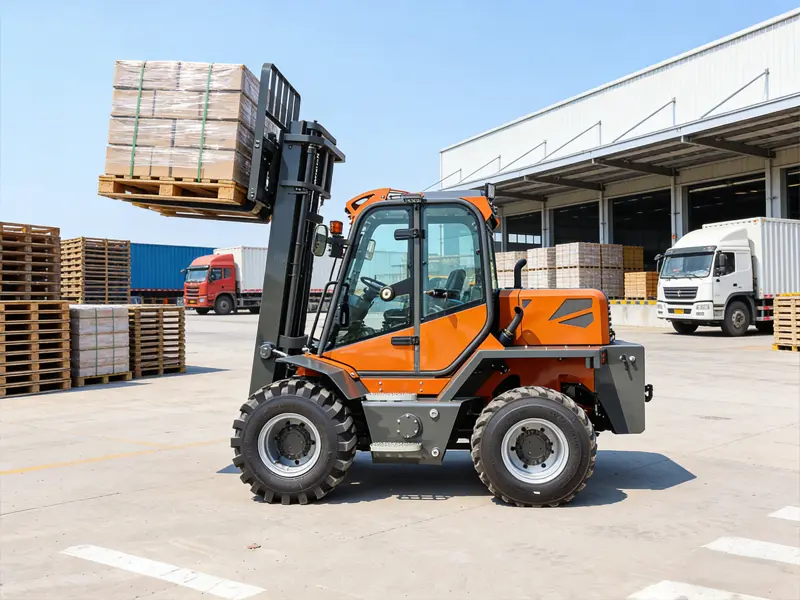

Ports & Logistics Yards
Supporting outdoor cargo handling in open storage areas and heavy-load zones.

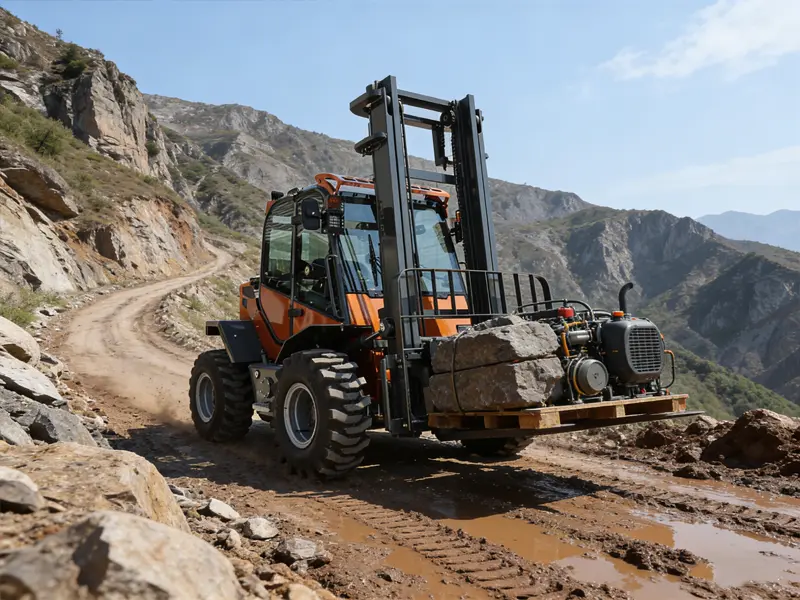

Mining & Resource Sites
Carrying heavy materials and equipment in harsh, rugged environments.
Outdoor Warehousing
Efficient pallet handling in open-air storage yards and distribution centers.
custom tire off road forklift
Fully customizable from tonnage to configuration, off-road forklifts deliver efficient and reliable performance in real-world operations. Below are the custom of tire off road forklift:
Customization Options
- Multiple Lifting Capacities Available
Offers configurations across various tonnages, covering routine handling to heavy-duty operations, catering to diverse industries and scenarios. - Optional Enclosed Cab
Supports installation of enclosed cabs and protective configurations, enhancing comfort and safety during operations in harsh weather and complex environments. - Custom Attachment Solutions
Customizable attachments including forks, side shifters, and clamps tailored to material types, enabling more efficient and specialized handling tasks. - Off Road Forklift OEM/ODM service
configurations, meeting differentiated requirements at brand, market, and project levels.
Off Road Forklift with attachments
Excavator-End Quick Change
Loader-End Quick Change
JCB 6-in-1 Bucket
4-in-1 bucket
Tilting Bucket
Land Leveling Bucket
Rock Hopper
Agitator Bucket
Sweeper
Snow Brush
Snow Pusher
Rotary Grapple
European Claw
Auger
Hydraulic Breaker
Vibration Tamper
Pallet Fork
Certificates
From internationally recognized compliance certifications to proprietary intellectual property achievements, our comprehensive qualification system provides dual assurance for product quality, regulatory compliance, and technological innovation. Having passed rigorous audits by authoritative bodies, we meet global market access standards while leveraging proprietary patented technologies to fortify our products’ core competitiveness. Every piece of equipment we provide comes with reliable certification as a guarantee.
off road forklift Manufacturer and Supplier
Snowy Owl is a professional off road forklift manufacturer and supplier with over 10 years of experience in engineering machinery production. With strong manufacturing capability and strict quality control, we provide reliable and high-performance off road forklifts for outdoor material handling. Supported by an experienced R&D team, we offer flexible customization options to meet different working conditions. All products are manufactured to international standards and certified with ISO 9001 and CE, ensuring safety, durability, and long-term reliability.For further information or customized solutions, please contact our professional technical team.
