Compact Telehandler | Small Telescopic Handler Manufacturer

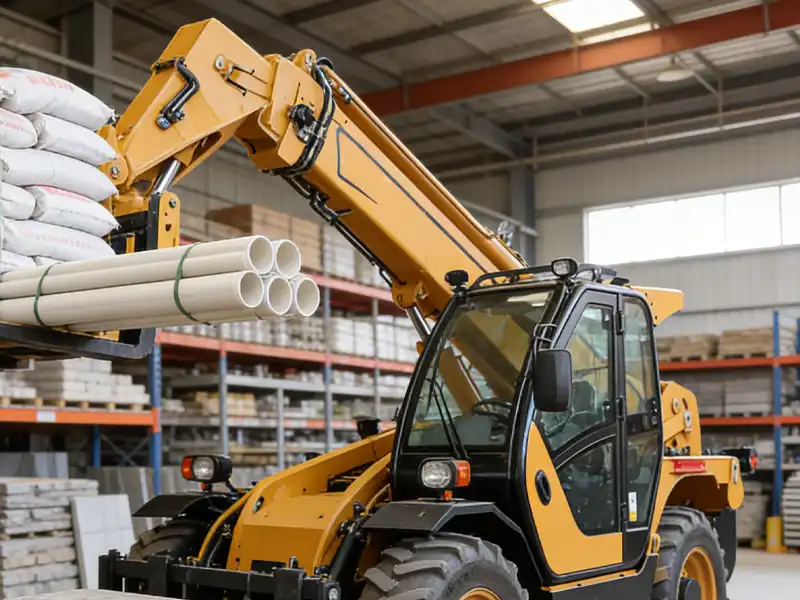

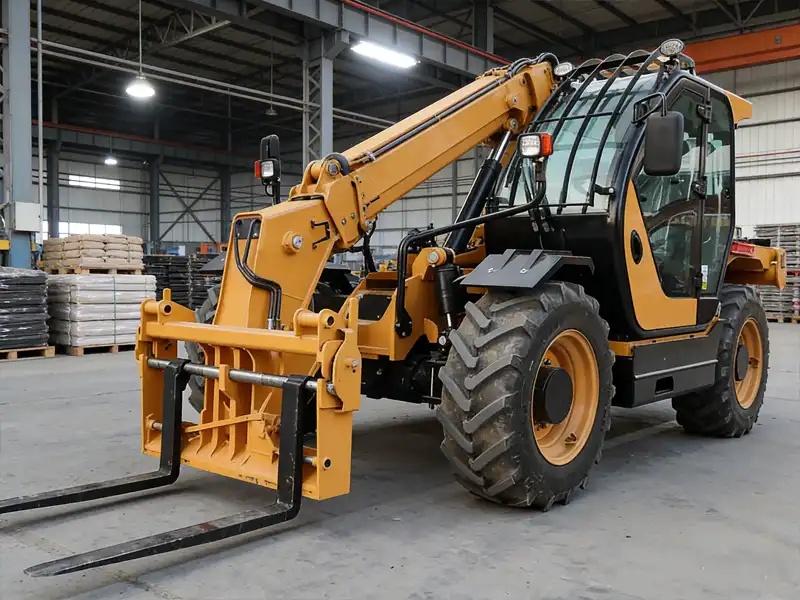

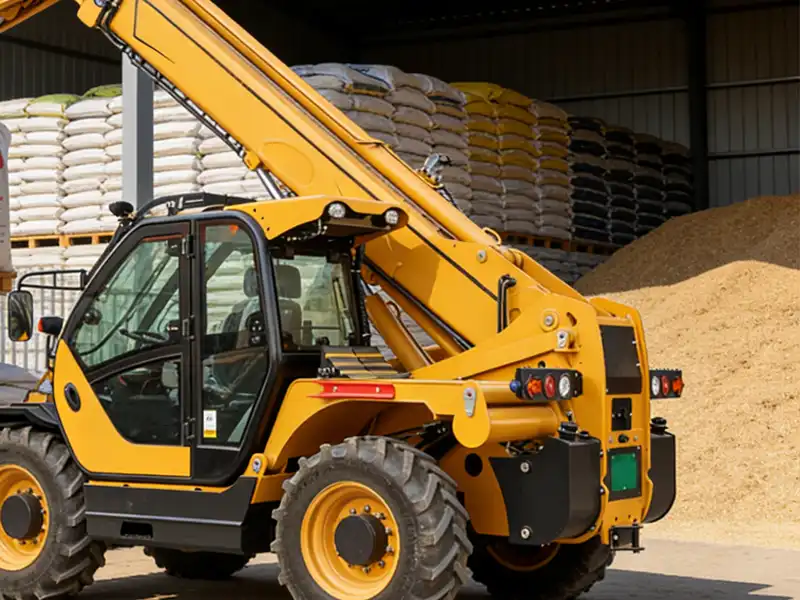

A Compact telehandler is a small, versatile loading machine capable of lifting and handling materials over extended distances via a telescopic boom. Characterized by its agile maneuverability and strong load-bearing capacity, it is widely utilized in sectors such as construction, agriculture, warehousing, and industrial material handling.
- Dimension(Long * Breadth * High): 4990*2290*2490
- Machine weight(Kg): 8900 kg
- Wheel track(mm): 1870mm
- Tyre specification: 400/70R24

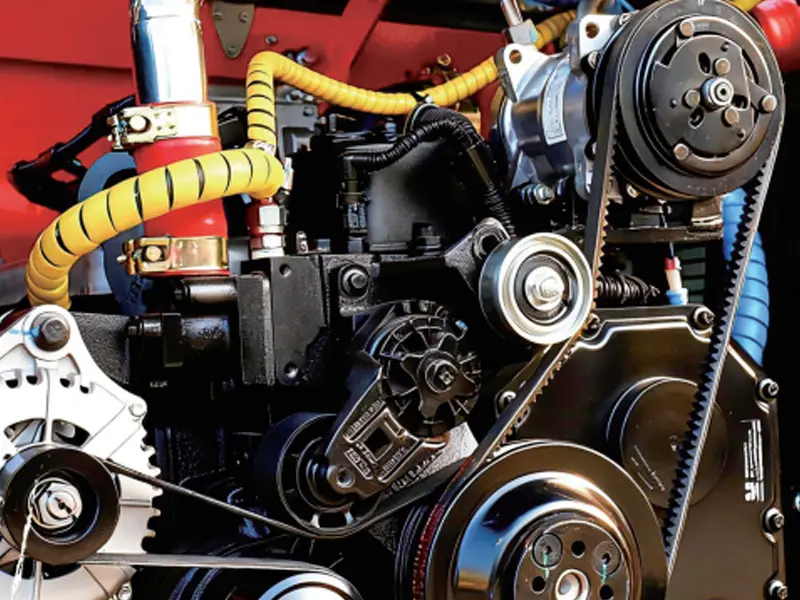

- Engine type: Yu dong 4102 pressurization
- Power(Kw): 77kw
Price: $19,999-$29,999
Introduct
Compact telehandler forklift is compact, highly maneuverable, and versatile construction machines that combine the forklift’s material-handling capabilities with the lifting advantages of a telescopic boom. Their key feature is the ability to operate in confined spaces such as narrow construction sites, urban streets, parking lots, or indoor environments. These machines are typically equipped with four-wheel drive and multiple steering modes. They are compatible with a variety of skid steer loader attachments—such as buckets and grapples—via quick-connect couplers, enabling them to perform a wide range of tasks from material handling and unloading to site cleanup. Their compact design also makes them lighter in weight, facilitating transport via small truck trailers.
Chinese backhoe loader Structure
- Traveling System:

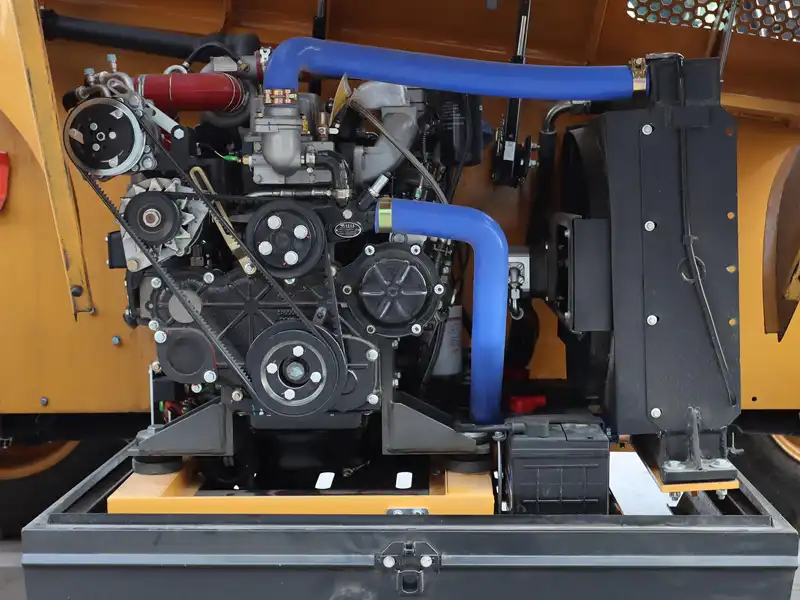

Provides the equipment’s mobility and structural foundation, comprising the chassis, engine, and transmission components. - Working Device:

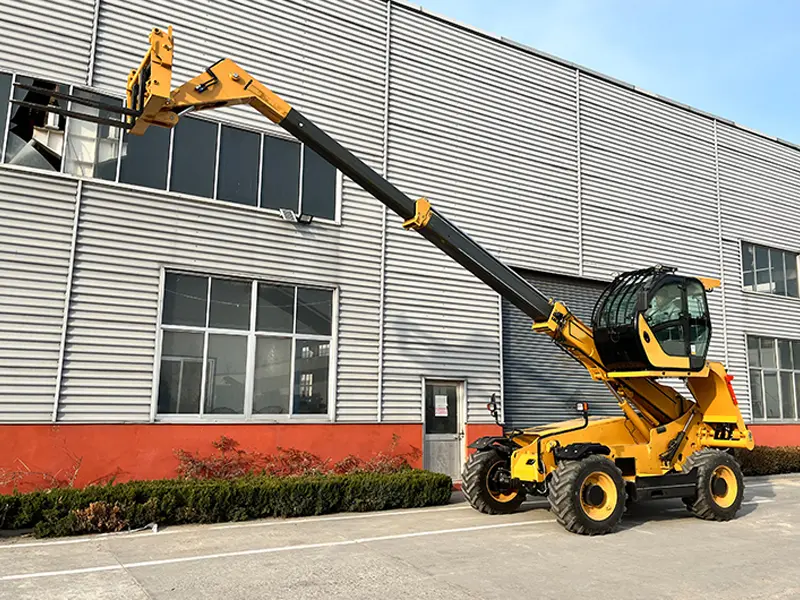

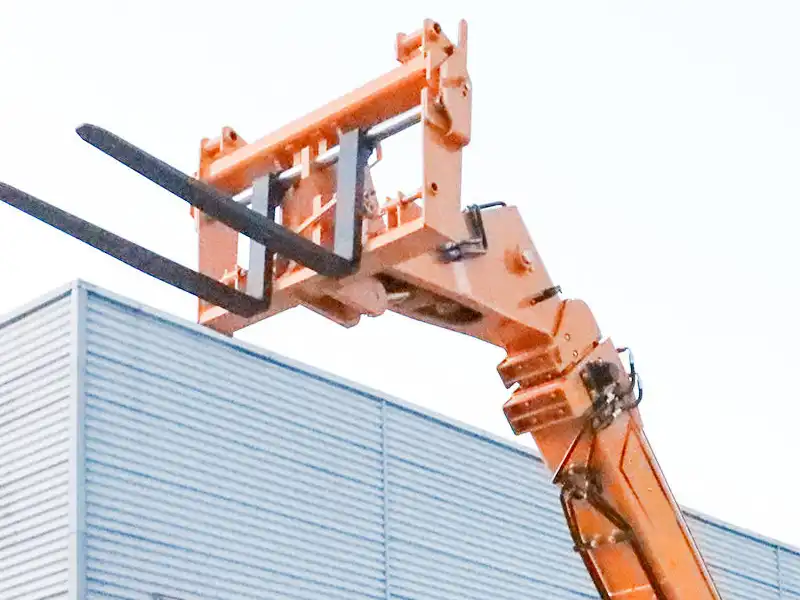

The core operational assembly, consisting of a telescopic boom and a head unit designed for quick attachment of implements. - Operation and Control System:

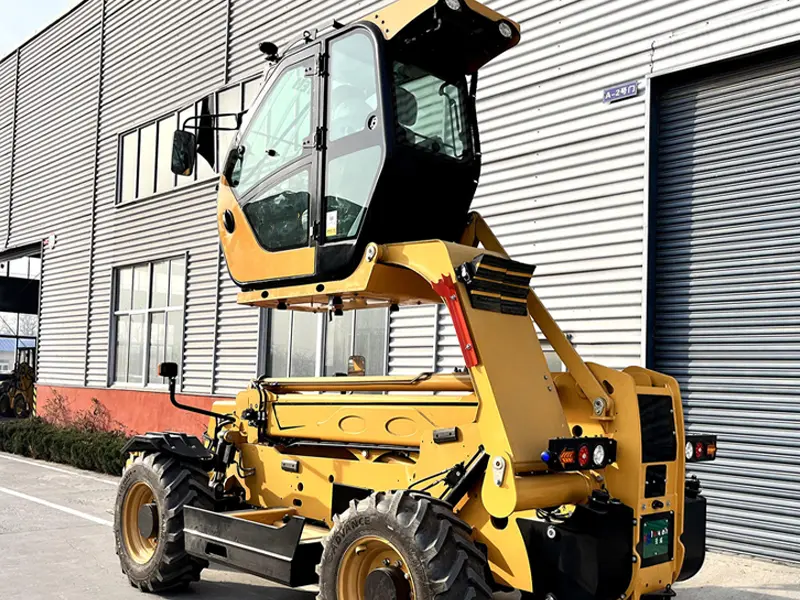

The operator’s workspace, housing the cab, steering wheel, and control levers. - Hydraulic and Counterweight Systems:
The hydraulic unit, which supplies operational power, and the rear counterweight block, which balances the load.
Chinese backhoe loader Working principle
The operating principle of a compact telehandler is based on hydraulic transmission and the equilibrium of lever moments. The engine drives a hydraulic pump to generate high-pressure fluid, which is then directed through a control valve bank to various hydraulic cylinders: the travel cylinders (or hydraulic motors) drive the wheels to facilitate movement; the lift cylinders adjust the boom angle to control vertical articulation; and the internal telescopic cylinders extend the boom sections to achieve forward reach. By adjusting the boom’s angle and length, the operator enables the attachment—such as a set of forks—to precisely engage and lift the load; simultaneously, the counterweight located at the rear of the vehicle body balances the tipping moment generated by the extended load, thereby enabling the completion of lifting, transporting, and unloading operations.
Videos Show
Watch the video to gain a comprehensive understanding of the operating procedures and versatile applications of compact telehandlers.
Details Show

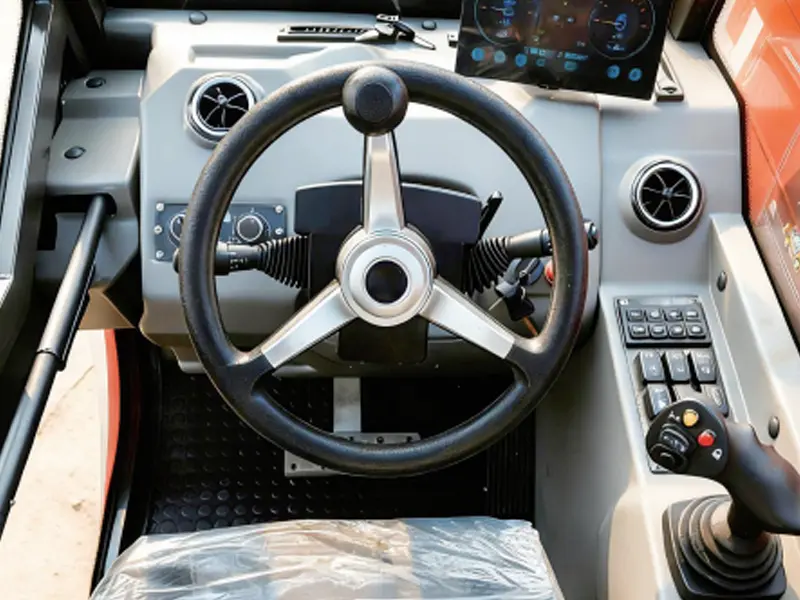

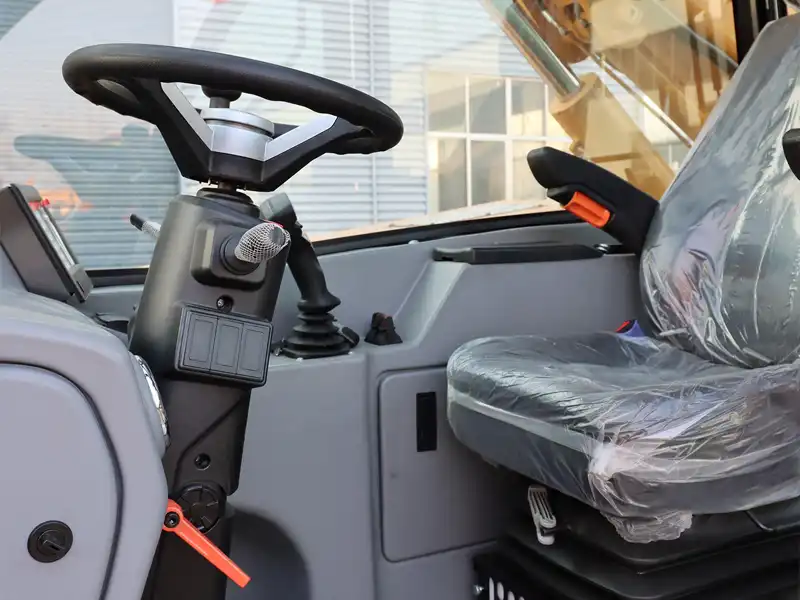

Step into the control hub of the compact telehandler. Featuring an ergonomically designed, multi-functional steering wheel layout paired with an integrated LCD instrument panel, it provides at-a-glance visibility of vehicle status, boom angle, and fault codes—enabling precise, single-operator control.
Specifications
View detailed specifications to gain a comprehensive understanding of the dimensions, power, load capacity, and operational performance of this compact telehandler. Below are the specifications for the compact telehandler:
Parameters
| Condition | New | Place of Origin | Shandong, China |
| Fork Length | 1820 mm,2000mm | Fork Width | 180 mm, 184 mm |
| Forklift Turning Radius | 378cm | Forklift Wheelbase | 276cm |
| Load Centre Distance | 1500 mm | Mast Type | Three Stage Mast |
| Power Source | Diesel | Model Number | 35-95 |
| Brand Name | Xuexiao Machinery | Applicable Industries | Farms, Building Material Shops, Warehouse |
| Drive Type | 4×4 | Forklift Tyre | Pneumatic Tire |
| Operating Mode | Seated Operation | Terrain Adaptability | Offroad |
| Travel Speed (laden) | 35 km/h | Travel Speed (unladen) | 35 km/h |
| Overall Dimension(mm) | 4990*2290*2490 | Machine Weight(kg) | 8900 |
| Wheel Track(mm) | 1870 | Min.ground Clearance(mm) | 400 |
| Wheelbase(mm) | 2750 | Min.turning Radius(mm) | 1870 |
| Tyre Specification | 400/70R24 | Engine Type | Yu dong 4102 pressurization |
| Power(kw) | 77 | Intake Mode | Turbocharging |
features compact telehandler
Compact Design
Small footprint allows for easy maneuvering in confined spaces.

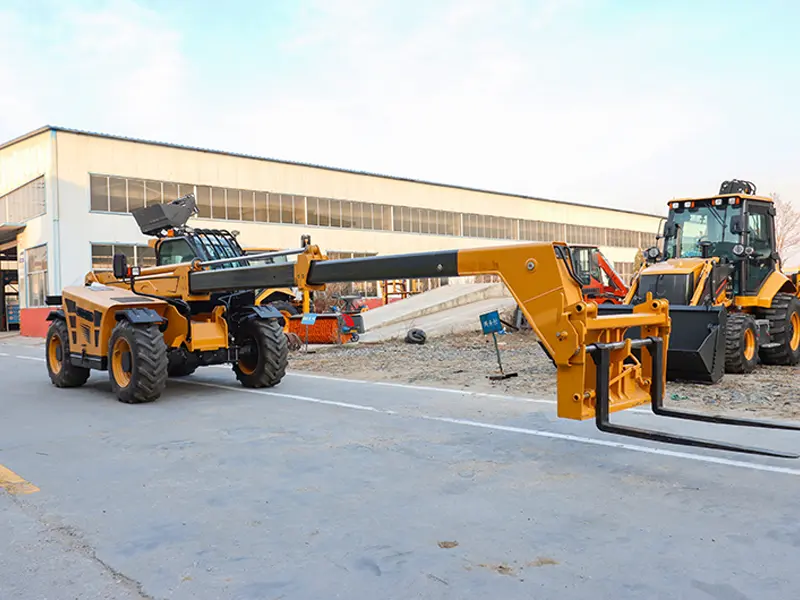

Telescopic Boom
Enables long-distance handling and stacking of materials.
Versatile Attachments
Supports various tools, including forks, hooks, and buckets.
Hydraulic System
Ensures smooth operation, high efficiency, and reduced operator fatigue.

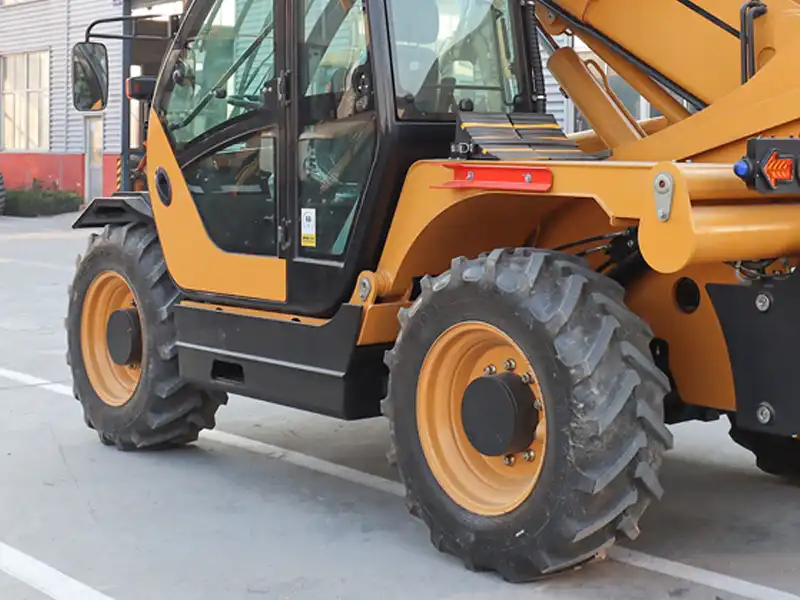

Four-Wheel Drive
Offers robust off-road capability, adapting to complex working conditions.
Safety Features
Equipped with anti-tipping and overload protection for secure and worry-free operation.

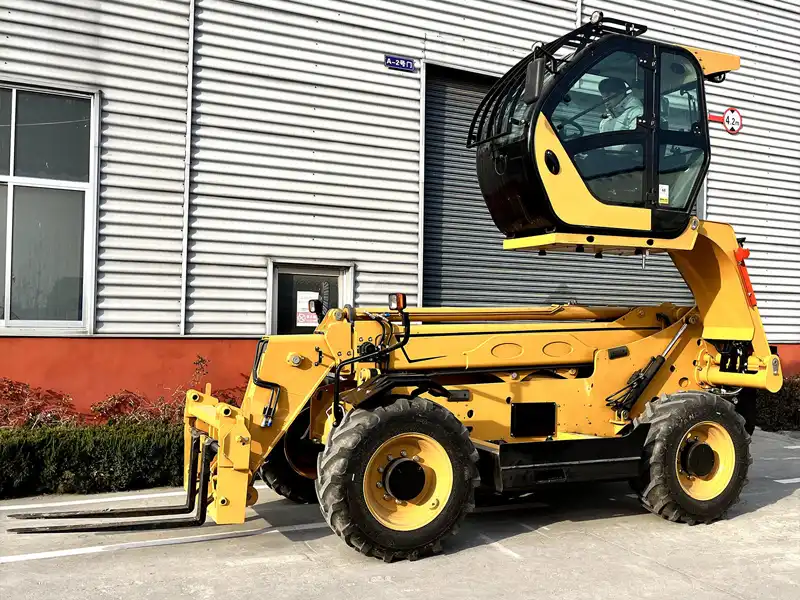

Compact rotating telehandler Applications
Compact telehandlers combine the functions of both a forklift and a small crane, featuring a compact body, agile maneuverability, and robust load-bearing capacity. They are well-suited for operations in confined spaces, making them an ideal material handling tool for construction, agriculture, warehousing, logistics, and industrial environments. Below are applications of the compact rotating telehandler:

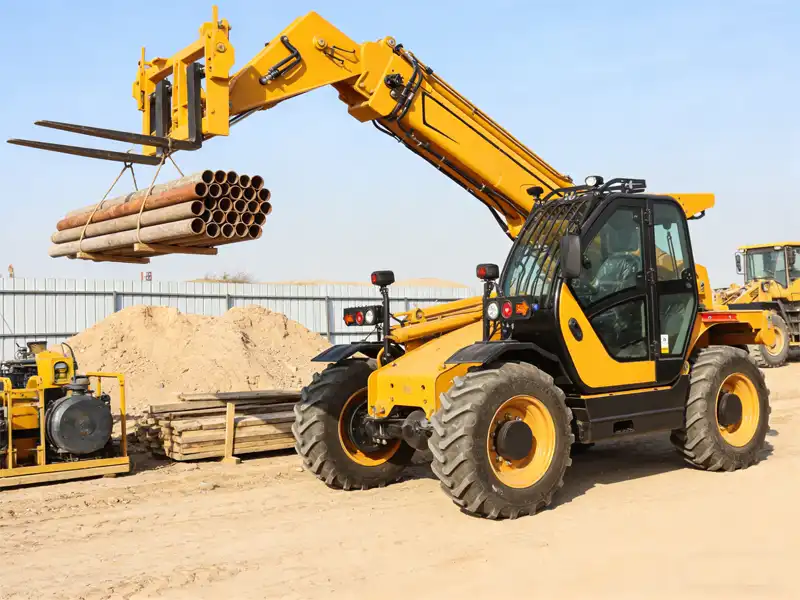

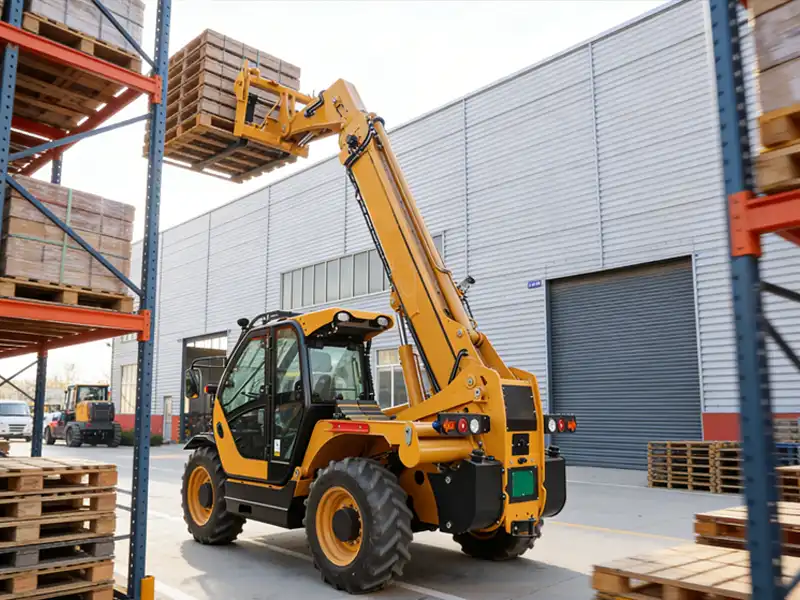

Construction Site Handling
Effortlessly transport bricks, sand, gravel, and various building materials.
Building Material Stores
Easily handle cement bags, piping, and stone materials.
Industrial Workshop Operations
Streamline the handling of equipment parts and materials.
Outdoor Engineering Projects
Efficiently transport pipes, timber, and machinery.
custom compact telehandler
Xuexiao Machinery custom-built compact telescopic forklifts are designed to meet specific customer requirements, offering flexible adaptation to various working conditions and environments. Whether it’s the powertrain, attachments, or control systems, every aspect can be tailored to ensure efficient material handling, precise stacking, and safe operation, meeting the needs of construction, agriculture, warehousing, and industrial sites.
Customization Options
- Powertrain:
Choose from diesel, electric, or hybrid configurations. - Telescopic boom length:
Customized based on working height and transport distance. - Work Attachments:
A variety of tools, including forks, hooks, and buckets. - Tire Types:
Off-road tires, industrial tires, or tires for special surfaces. - Hydraulic System:
Hydraulic solutions tailored to different load capacities and operational precision requirements. - Cab Configuration:
Customizable comfort seats, air conditioning, and control panels. - Color and Branding:
Customizable body color, brand logos, and safety markings. - Special Features:
Four-wheel steering, load monitoring, or remote control, among others.
attachments
certifications
From internationally recognized compliance certifications to proprietary intellectual property achievements, our comprehensive qualification system provides dual assurance for product quality, regulatory compliance, and technological innovation. Having passed rigorous audits by authoritative bodies, we meet global market access standards while leveraging proprietary patented technologies to fortify our products’ core competitiveness. Every piece of equipment we provide comes with reliable certification as a guarantee.
compact telehandler Manufacturer and Supplier
Xuexiao Machinery is a professional manufacturer and supplier of compact telehandlers with over ten years of experience in construction machinery R&D and manufacturing. We specialize in producing high-performance, multi-purpose compact telehandlers designed to meet the diverse material handling needs in construction, agriculture, warehouses, and logistics.
We offer compact telehandlers for sale with flexible customization options, including engine power, hydraulic systems, boom length, fork types, and multi-functional attachments. Each compact telehandler is engineered to deliver outstanding performance, safety, and durability for demanding material handling tasks. Contact us today to find the right compact telehandler for sale tailored to your project requirements.
