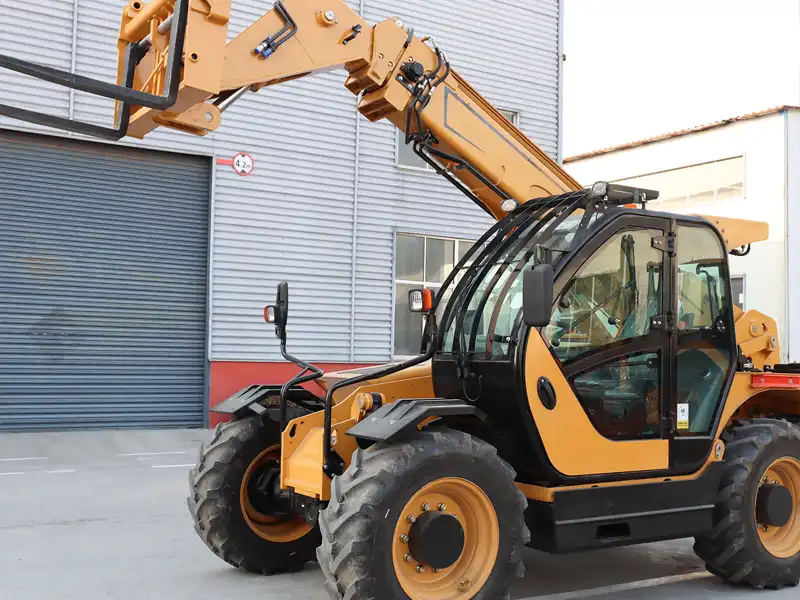

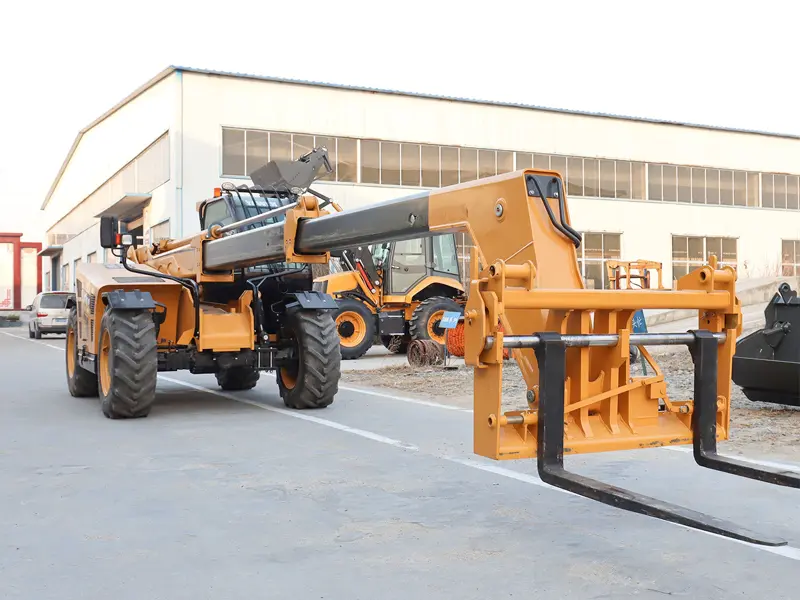

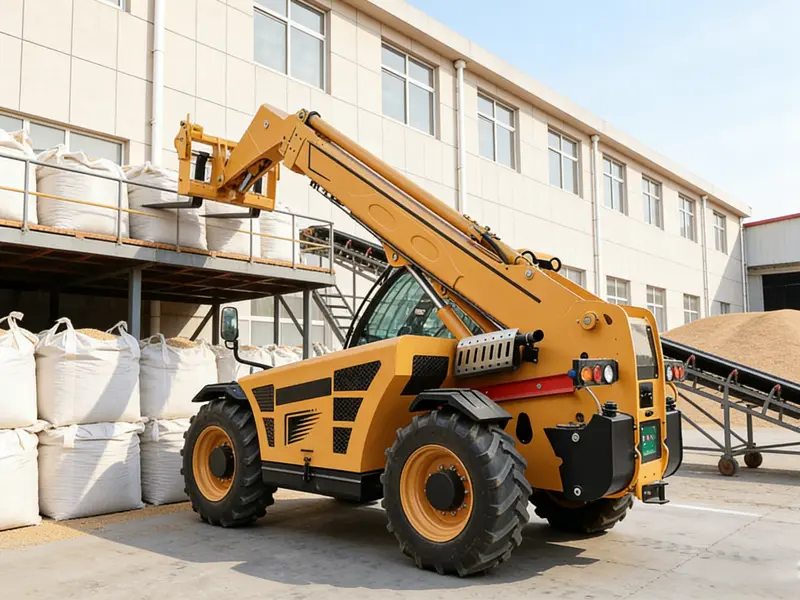

Best Agricultural Telehandler for Farms
An agricultural telehandler is a versatile piece of equipment used for material handling and loading/unloading on farms. Powered by a hydraulic system, its telescoping boom enables lifting, reaching, and stacking operations. It features a high lifting capacity, a wide operating range, strong off-road capabilities, and compatibility with a variety of interchangeable attachments. Commonly used for agricultural tasks such as handling hay bales, loading and unloading feed, and stacking grain, it effectively improves farm operational efficiency.
- Dimension(Long * Breadth * High): 4990*2290*2490
- Fork Length: 2000 mm
- Fork Width: 180 mm, 184 mm, 150 mm
- Power Source: Diesel
- Engine Type: Yu dong 4102 pressurization
- Power(Kw): 77kw
Price: $19,888-$29,888
Introduct
An agricultural telehandler is a material-handling machine equipped with a hydraulic telescopic boom, capable of lifting loads to great heights and transporting them over long distances. With its stable structure and high load-bearing capacity, it can perform a variety of tasks by switching attachments, making it an essential piece of equipment in modern agriculture.
Structure farm telehandler
- Chassis / Frame – Supports the machine’s weight and provides stability and off-road capability.
- Engine – Provides the power source; may be diesel or electric.
- Hydraulic System – Drives the telescopic boom’s lifting, extension, and attachment operations.

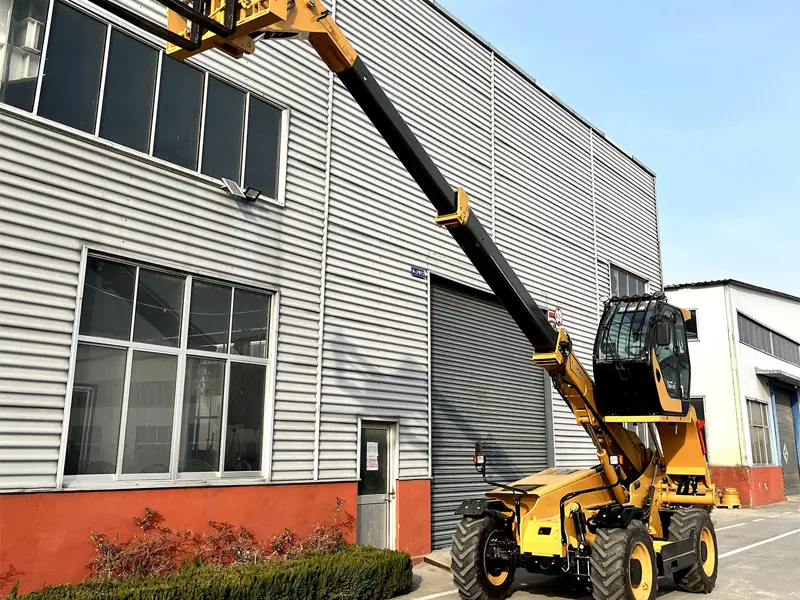

- Telescopic Boom – The core working component, enabling high-altitude and long-distance material handling.
- Lift Cylinder – Controls the telescopic boom’s vertical movement, enabling precise lifting operations.
- Cab / Operator Station – The control center, providing visibility and safety protection.
- Wheels & Drive System – Provides off-road mobility and power transmission.
- Attachment Mounting – Supports versatile attachments such as pallet forks, bale clamps, and buckets.
- Stabilizers / Outriggers (Optional) – Enhance lifting safety and operational stability.
- Control & Safety System – Operated via joysticks or electronic controls, including load sensors and safety devices.
Working principle agricultural telehandler
Agricultural telescopic forklifts primarily use a hydraulic system to drive the telescopic boom, enabling the lifting and extension of materials. Their core components include the engine, hydraulic pump, telescopic boom, lift cylinder, and control system. When the operator starts the equipment, the engine powers the hydraulic pump, which delivers hydraulic fluid to the lift cylinders and telescopic cylinders. The pressure of the hydraulic fluid extends or retracts the telescopic boom, enabling the long-distance transport and high-level stacking of materials. At the same time, the hydraulic system also controls the forklift’s tilt, rotation (if equipped), and attachment movements, allowing the equipment to perform various tasks safely and smoothly.
Videos Show
Watch the video to gain a comprehensive understanding of the operating procedures and versatile applications of the agricultural telehandler.
Details Show

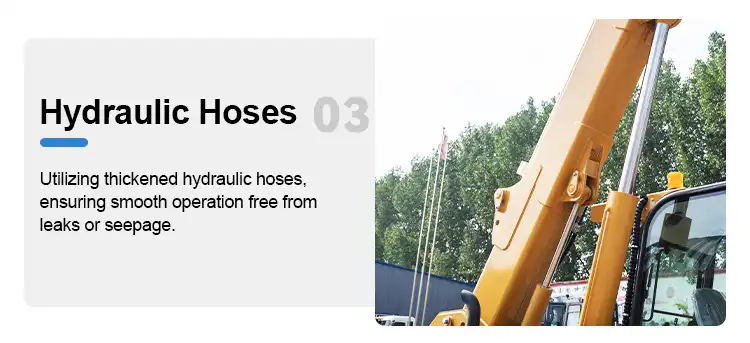

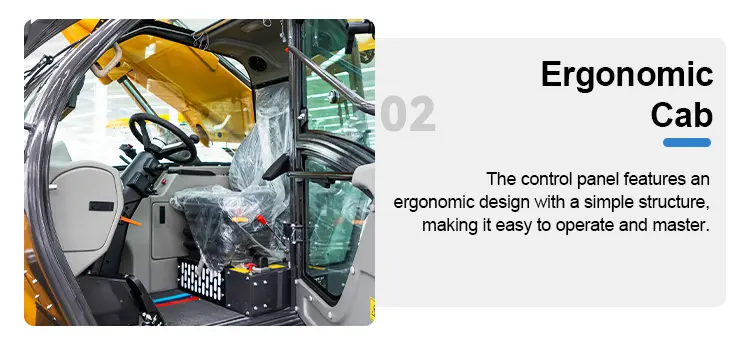

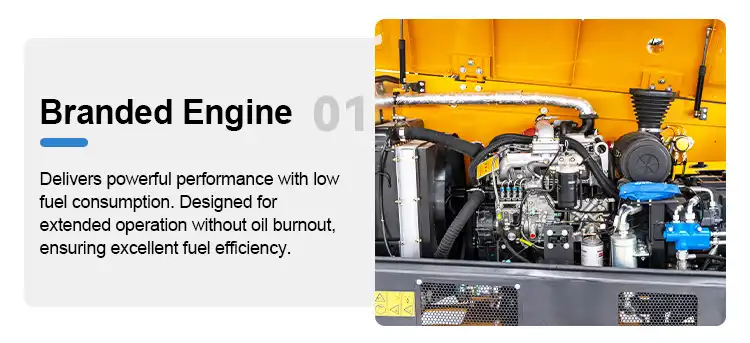

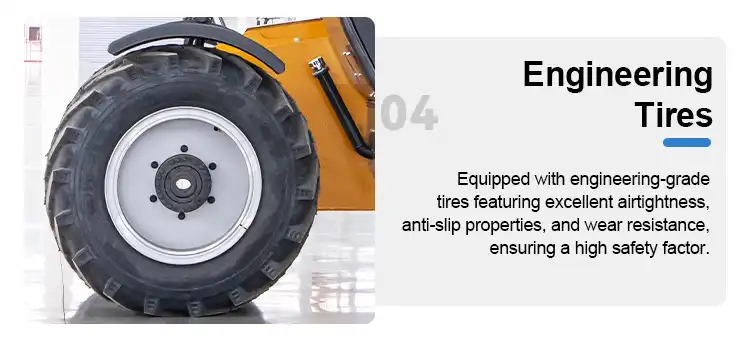

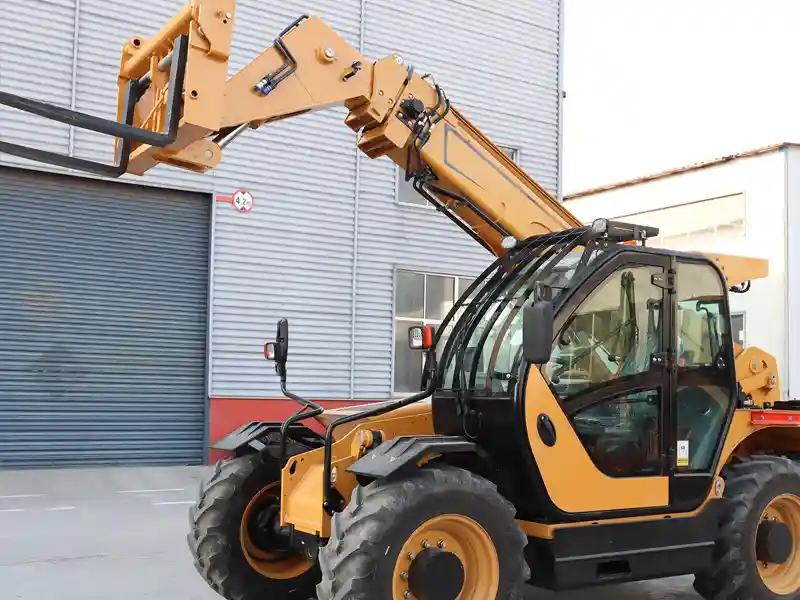

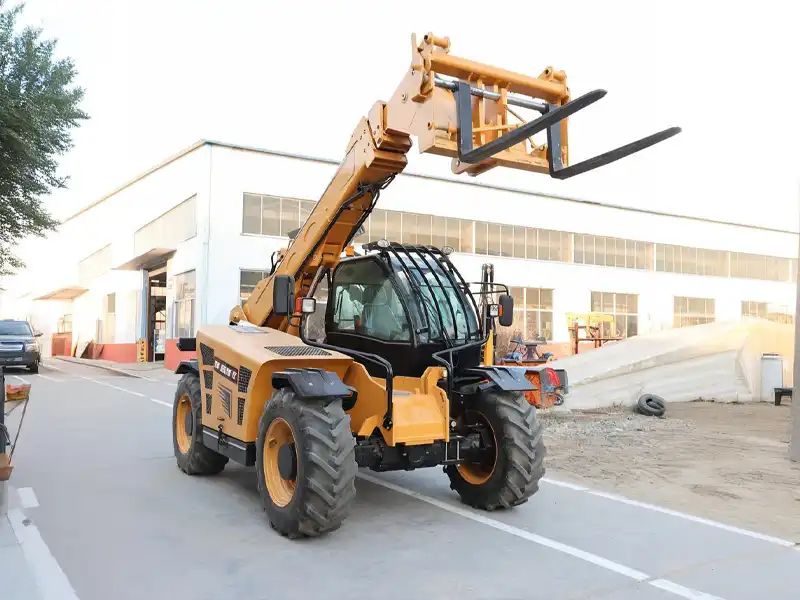

The agricultural telehandler’s engine delivers reliable power, the cab ensures ease of operation, durable hydraulic hoses support smooth lifting and lowering, off-road tyres adapt to various terrains, and versatile attachments—such as pallet forks, bale clamps, and buckets—meet a wide range of operational needs, making this a multi-functional machine for efficient farm transport. Below are the details shown for the agricultural telehandler:
Specifications
Key Parameters of Agricultural Telehandlers: Instantly grasp body dimensions, engine power, load capacity, and applicable operating conditions.
Parameters
| Condition | New | Place of Origin | Shandong,China |
| Fork Length | 2000mm | Fork Width | 180 mm, 184 mm,150 mm |
| Forklift Turning Radius | 3800mm | Forklift Wheelbase | 276cm |
| Load Centre Distance | 1800mm | Mast Type | Three Stage Mast |
| Power Source | Diesel | Model Number | 35-95 |
| Brand Name | Xuexiao Machinery | Applicable Industries | Farms, Building Material S Warehouse, Manufacturin Plant, Machinery Repair Sh |
| Drive Type | 4Wd | Forklift Tyre | Pneumatic Tire |
| Operating Mode | Seated Operation | Terrain Adaptability | Offroad |
| Travel Speed (laden) | 35 km/h | Travel Speed (unladen) | 35 km/h |
| Overall Dimension(mm) | 4990*2290*2490 | Machine Weight(Kg) | 8900 |
| Wheel Track(mm) | 1870 | Min.Ground Clearance(mm) | 400 |
| Wheelbase(mm) | 2750 | Min.Turning Radius(mm) | 1870 |
| Tyre Specification | 400/70R24 | Engine Type | Yu Dong 4102 pressurization |
| Power(KW) | 77 | Fuel Tank | 150L |
features Agricultural Telehandler
Compact and Agile
Compact body with a tight turning radius.
Extended Reach
Telescopic boom covers a wider working range.
Multifunctional
Easily switch between various attachments.
Smooth Operation
Hydraulic system ensures precise motion control.
Off-Road Capability
Four-wheel drive handles complex terrain.
Safety Assurance
Features load sensing and anti-tipping design.
Applications Agricultural Telehandler
The agricultural telehandler is a versatile and indispensable tool for farm material handling. Equipped with a telescopic boom and interchangeable attachments, it effortlessly executes a wide range of agricultural tasks—boosting efficiency and reducing labor costs. It is ideally suited for the handling and stacking of grain, feed, hay bales, fertilizers, and farm equipment.
Hay Bale Handling
Use a telehandler for hay bale handling to quickly move and stack hay or silage, boosting livestock feeding efficiency on your farm.
Feed Loading & Transport
Transport feed from storage facilities or delivery vehicles to feed troughs or feeding areas.

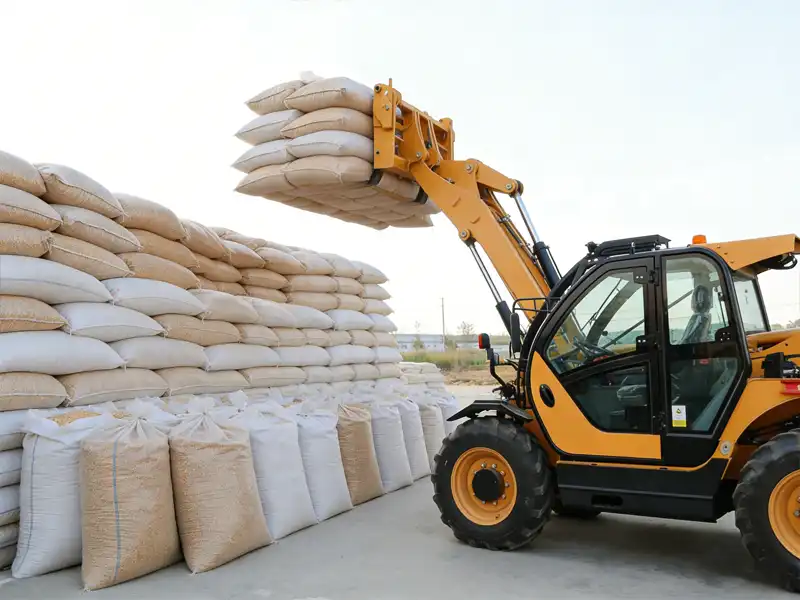

Grain Handling & Stacking
Use a telehandler for grain handling to efficiently move and stack bagged or bulk grain, streamlining your farm operations.

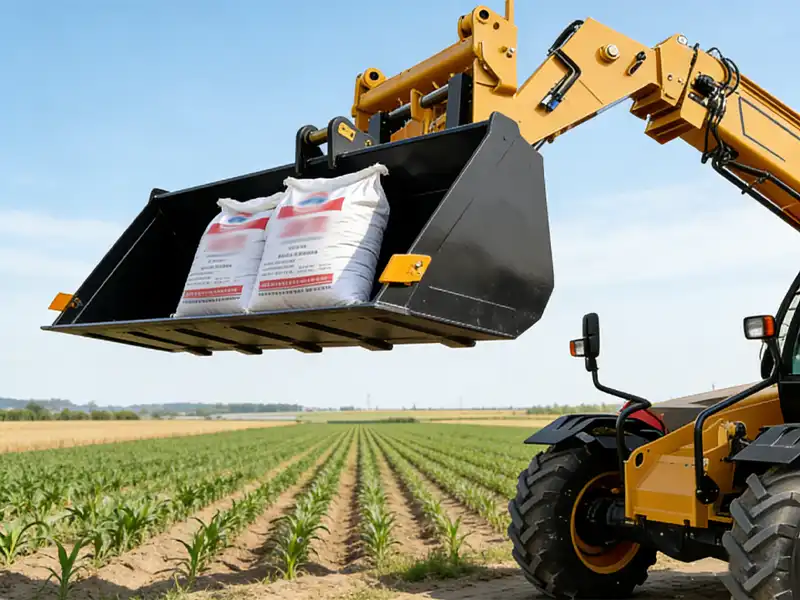

Fertilizer Handling
Safely transport bagged or bulk fertilizer to facilitate field application.
Farm Equipment Handling
Move small agricultural machinery or tools to enhance operational flexibility.
Multi-Purpose Material Handling

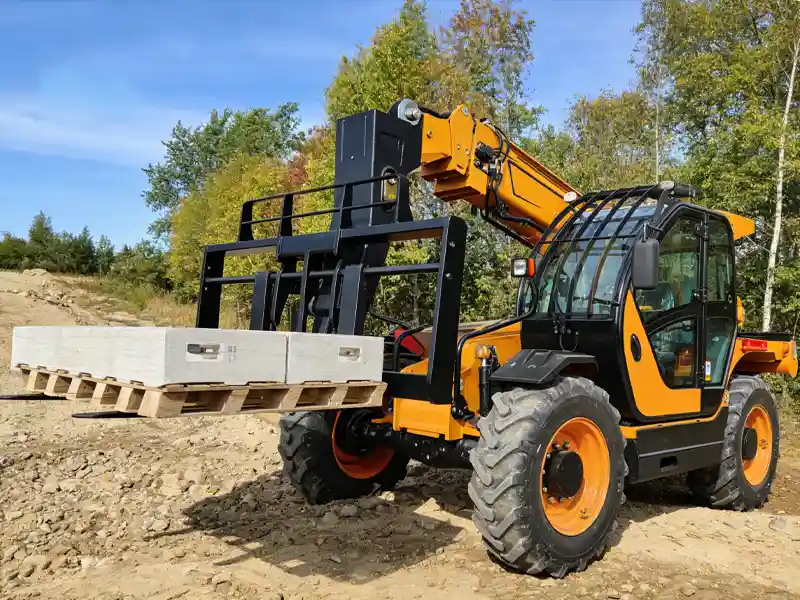

Handle a wide variety of farm materials using attachments such as pallet forks and buckets.

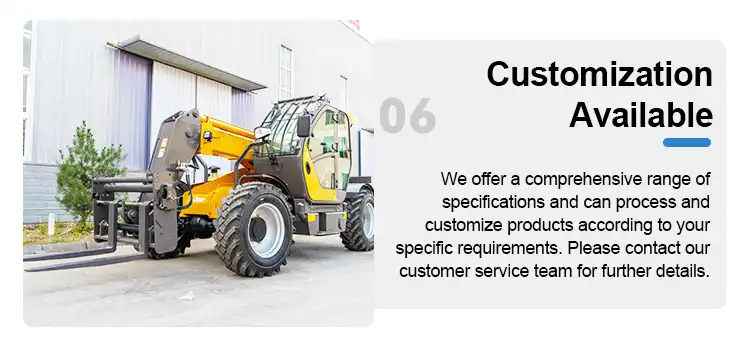

custom Agricultural Telehandler
Our Agricultural Telehandlers offer flexible customization options, allowing customers to tailor the power system, boom length, attachments, and safety features to meet specific farm operation requirements, terrain conditions, and material types, thereby helping them achieve efficient, precise, and reliable agricultural material handling operations.
Looking for a reliable farm telehandler? Contact us today to find the perfect solution tailored to your farm’s needs.
Customization Options
- Engine Customization – Choose from engines with different power ratings and fuel types to meet the varying operational demands and fuel requirements of your farm.
- Boom Length Customization – Boom lengths can be customized based on required working heights and distances to enable long-distance transport and high-level stacking.
- Cab Customization – Options include air conditioning, suspension seats, wide-view windows, and control consoles to enhance operator comfort and safety.
- Hydraulic System Customization – Adjust lifting speed, load capacity, and hydraulic attachment ports to accommodate different materials and implements.
- Wheels & Chassis Customization – Choose off-road tires, tracks, or a raised chassis for stable operation on complex terrain.

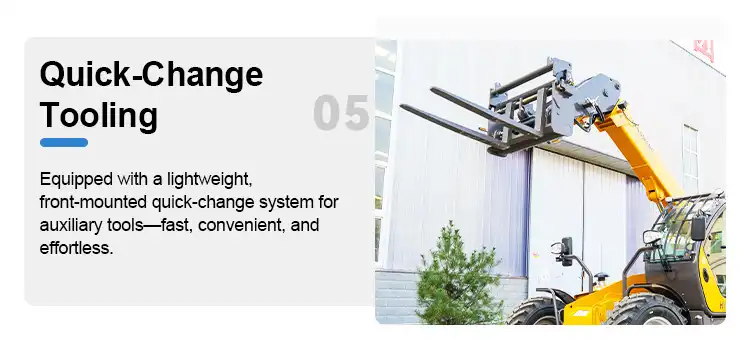

- Attachment Customization – Telehandler with bucket, telehandler with pallet forks, telehandler with bale clamp, buckets, or grapples based on operational needs to enable versatile operations.

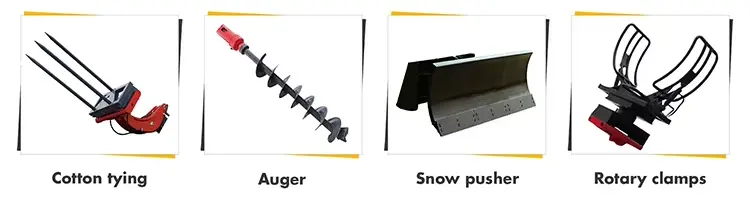

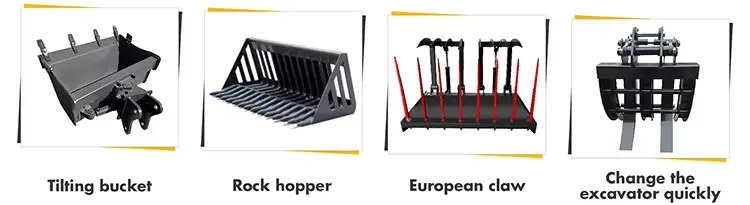

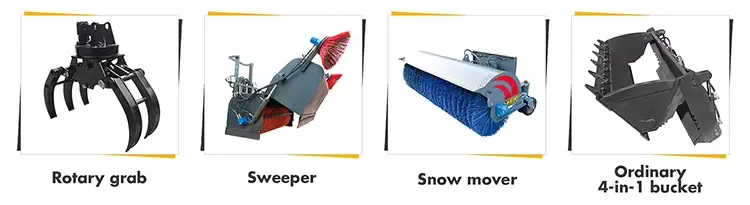

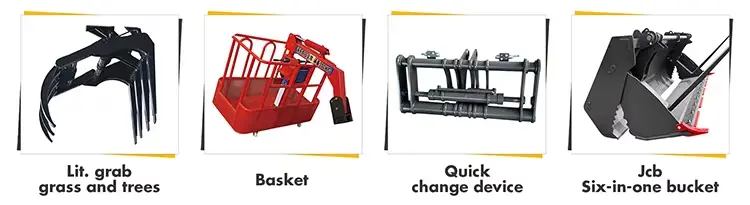

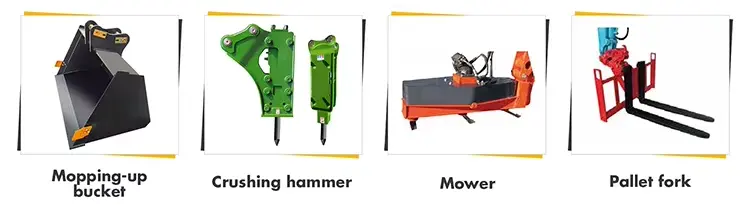

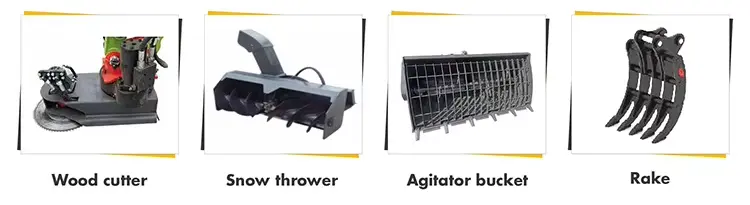

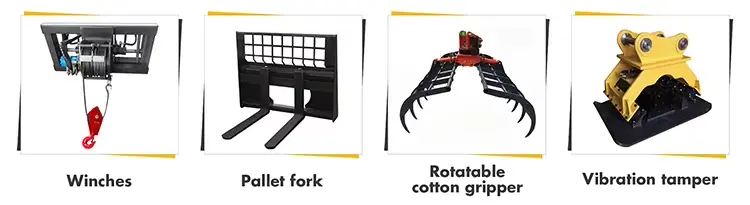

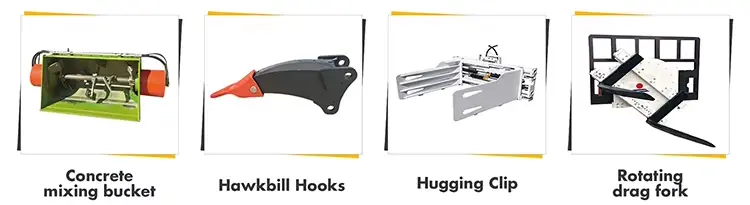

attachments
certifications
From internationally recognized compliance certifications to proprietary intellectual property achievements, our comprehensive qualification system provides dual assurance for product quality, regulatory compliance, and technological innovation. Having passed rigorous audits by authoritative bodies, we meet global market access standards while leveraging proprietary patented technologies to fortify our products’ core competitiveness. Every piece of equipment we provide comes with reliable certification as a guarantee.
Agricultural Telehandler Manufacturer and Supplier
Xuexiao Machinery is a professional agricultural telehandler manufacturer and supplier with over ten years of experience in agricultural machinery R&D and manufacturing. We specialize in producing high-performance, multi-purpose telehandlers for agriculture designed to meet diverse material handling needs on farms, including hay bale handling, feed transport, grain stacking, and other farm operations.
We offer a wide range of agricultural telehandler for sale with flexible customization options, including engine power, hydraulic systems, boom length, fork types, and various multi-functional attachments. Each agricultural telehandler is engineered to deliver reliable performance, safety, and durability for demanding farm lifting and material handling tasks. Contact us today to find the right telehandler for agriculture tailored to your farm’s requirements.
